Documentation for AdsML
Definition Type: Element
Name: AdsMLEnvelope
Namespace: http://www.adsml.org/adsmlenvelope/1.1
Containing Schema: AdsMLEnvelope-1.1-Main-AS.xsd
Abstract

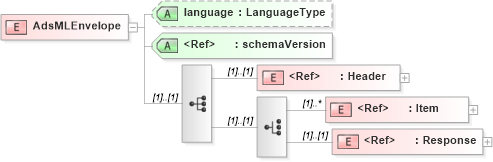

Collapse XSD Schema Diagram:
Drilldown into Response in schema adsmlenvelope-1_1-main-as_xsd Drilldown into Item in schema adsmlenvelope-1_1-main-as_xsd Drilldown into Header in schema adsmlenvelope-1_1-main-as_xsd Drilldown into schemaVersion in schema adsmltypelibrary-2_0-as_xsd Drilldown into language in schema adsmlenvelope-1_1-main-as_xsdXSD Diagram of AdsMLEnvelope in schema adsmlenvelope-1_1-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdsMLEnvelope">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="Header" />
            <xs:choice>
                <xs:element ref="Item" maxOccurs="unbounded" />
                <xs:element ref="Response" />
            </xs:choice>
        </xs:sequence>
        <xs:attribute name="language" type="adsml:LanguageType" use="optional" />
        <xs:attribute ref="adsml:schemaVersion" use="required" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Header nsA:Header (1) (1)
Item nsA:Item (1) unbounded
Response nsA:Response (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
language nsA:language Optional
schemaVersion adsml:schemaVersion Required
