Documentation for AdsML
Definition Type: Element
Name: AdTicketIDMetadata
Namespace: http://www.adsml.org/adsmladticket/1.0
Containing Schema: AdsMLAdTicket-1.0-PublicTypeLibrary-AS.xsd
Abstract

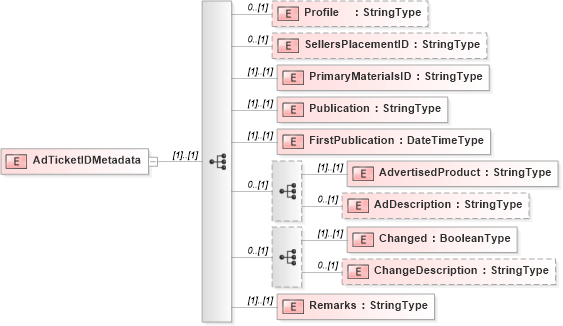

Collapse XSD Schema Diagram:
Drilldown into Remarks in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into ChangeDescription in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into Changed in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into AdDescription in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into AdvertisedProduct in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into FirstPublication in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into Publication in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into PrimaryMaterialsID in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into SellersPlacementID in schema adsmladticket-1_0-publictypelibrary-as_xsd Drilldown into Profile in schema adsmladticket-1_0-publictypelibrary-as_xsdXSD Diagram of AdTicketIDMetadata in schema adsmladticket-1_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdTicketIDMetadata">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="Profile" type="adsml:StringType" minOccurs="0" />
            <xs:element name="SellersPlacementID" type="adsml:StringType" minOccurs="0" />
            <xs:element name="PrimaryMaterialsID" type="adsml:StringType" />
            <xs:element name="Publication" type="adsml:StringType" />
            <xs:element name="FirstPublication" type="adsml:DateTimeType" />
            <xs:sequence minOccurs="0">
                <xs:element name="AdvertisedProduct" type="adsml:StringType" />
                <xs:element name="AdDescription" type="adsml:StringType" minOccurs="0" />
            </xs:sequence>
            <xs:sequence minOccurs="0">
                <xs:element name="Changed" type="adsml:BooleanType" />
                <xs:element name="ChangeDescription" type="adsml:StringType" minOccurs="0" />
            </xs:sequence>
            <xs:element name="Remarks" type="adsml:StringType" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Profile adsml-at:Profile 0 (1)
SellersPlacementID adsml-at:SellersPlacementID 0 (1)
PrimaryMaterialsID adsml-at:PrimaryMaterialsID (1) (1)
Publication adsml-at:Publication (1) (1)
FirstPublication adsml-at:FirstPublication (1) (1)
AdvertisedProduct adsml-at:AdvertisedProduct (1) (1)
AdDescription adsml-at:AdDescription 0 (1)
Changed adsml-at:Changed (1) (1)
ChangeDescription adsml-at:ChangeDescription 0 (1)
Remarks adsml-at:Remarks (1) (1)
