Documentation for AdsML
Definition Type: Element
Name: BookingInformation
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd
Abstract

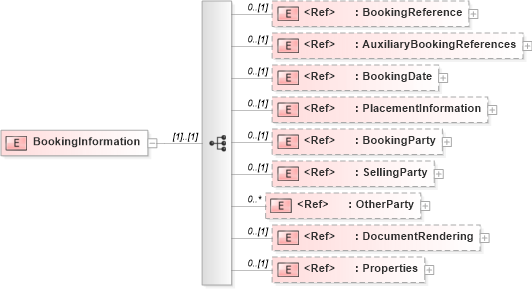

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into SellingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into PlacementInformation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into BookingDate in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into BookingReference in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of BookingInformation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="BookingInformation">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="adsml-bo:BookingReference" minOccurs="0" />
            <xs:element ref="adsml-bo:AuxiliaryBookingReferences" minOccurs="0" />
            <xs:element ref="adsml-bo:BookingDate" minOccurs="0" />
            <xs:element ref="PlacementInformation" minOccurs="0" />
            <xs:element ref="adsml:BookingParty" minOccurs="0" />
            <xs:element ref="adsml:SellingParty" minOccurs="0" />
            <xs:element ref="adsml:OtherParty" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="adsml:DocumentRendering" minOccurs="0" />
            <xs:element ref="adsml:Properties" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BookingReference adsml-bo:BookingReference 0 (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
BookingDate adsml-bo:BookingDate 0 (1)
PlacementInformation adsml-ma:PlacementInformation 0 (1)
BookingParty adsml:BookingParty 0 (1)
SellingParty adsml:SellingParty 0 (1)
OtherParty adsml:OtherParty 0 unbounded
DocumentRendering adsml:DocumentRendering 0 (1)
Properties adsml:Properties 0 (1)
