Definition Type: AttributeGroup
Name: commonMessageAttributes
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd

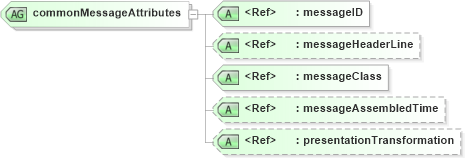

Collapse XSD Schema Diagram:
Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:attributeGroup name="commonMessageAttributes">
    <xs:attribute ref="messageID" use="required" />
    <xs:attribute ref="messageHeaderLine" />
    <xs:attribute ref="messageClass" use="required" fixed="BusinessTransaction" />
    <xs:attribute ref="messageAssembledTime" use="optional" />
    <xs:attribute ref="presentationTransformation" use="optional" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
