Documentation for AdsML
Definition Type: ComplexType
Name: ContractType
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract

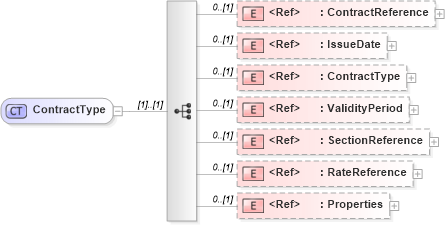

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into RateReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into SectionReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into ValidityPeriod in schema adsmltypelibrary-2_0-as_xsd Drilldown into ContractType in schema adsmltypelibrary-2_0-as_xsd Drilldown into IssueDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into ContractReference in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of ContractType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="ContractType">
    <xs:sequence>
        <xs:element ref="ContractReference" minOccurs="0" />
        <xs:element ref="IssueDate" minOccurs="0" />
        <xs:element ref="ContractType" minOccurs="0" />
        <xs:element ref="ValidityPeriod" minOccurs="0" />
        <xs:element ref="SectionReference" minOccurs="0" />
        <xs:element ref="RateReference" minOccurs="0" />
        <xs:element ref="Properties" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContractReference adsml:ContractReference 0 (1)
IssueDate adsml:IssueDate 0 (1)
ContractType adsml:ContractType 0 (1)
ValidityPeriod adsml:ValidityPeriod 0 (1)
SectionReference adsml:SectionReference 0 (1)
RateReference adsml:RateReference 0 (1)
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml:Contract
