Documentation for AdsML
Definition Type: Element
Name: MaterialsExpectations
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Type: adsml-ma:MaterialsExpectationsType.File
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd
Abstract

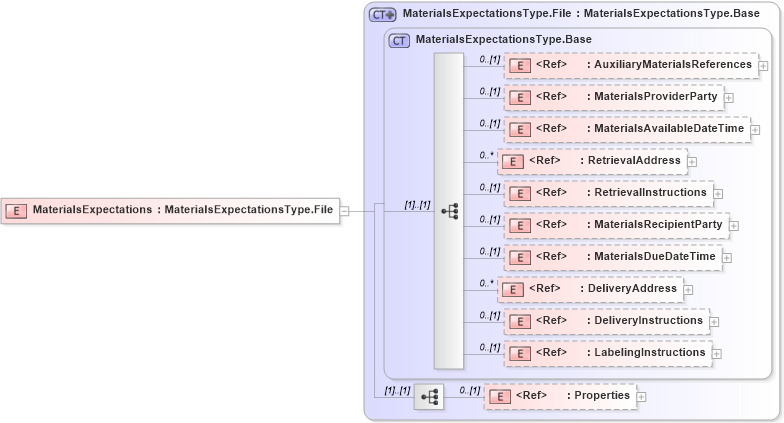

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into LabelingInstructions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into DeliveryInstructions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into DeliveryAddress in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsDueDateTime in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsRecipientParty in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into RetrievalInstructions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into RetrievalAddress in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsAvailableDateTime in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsProviderParty in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into AuxiliaryMaterialsReferences in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsExpectationsType.Base in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into MaterialsExpectationsType.File in schema adsmlmaterials-2_0-publictypelibrary-as_xsdXSD Diagram of MaterialsExpectations in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="MaterialsExpectations" type="MaterialsExpectationsType.File" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AuxiliaryMaterialsReferences adsml-ma:AuxiliaryMaterialsReferences 0 (1)
MaterialsProviderParty adsml-ma:MaterialsProviderParty 0 (1)
MaterialsAvailableDateTime adsml-ma:MaterialsAvailableDateTime 0 (1)
RetrievalAddress adsml-ma:RetrievalAddress 0 unbounded
RetrievalInstructions adsml-ma:RetrievalInstructions 0 (1)
MaterialsRecipientParty adsml-ma:MaterialsRecipientParty 0 (1)
MaterialsDueDateTime adsml-ma:MaterialsDueDateTime 0 (1)
DeliveryAddress adsml-ma:DeliveryAddress 0 unbounded
DeliveryInstructions adsml-ma:DeliveryInstructions 0 (1)
LabelingInstructions adsml-ma:LabelingInstructions 0 (1)
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
