Documentation for AdsML
Definition Type: ComplexType
Name: PhoneAddressType
Namespace: http://www.adsml.org/typelibrary/2.0
Type: adsml:CommunicationChannel.BaseType
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract

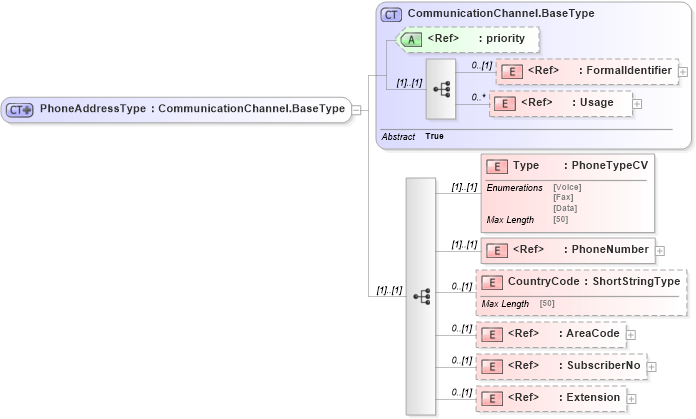

Collapse XSD Schema Diagram:
Drilldown into Extension in schema adsmltypelibrary-2_0-as_xsd Drilldown into SubscriberNo in schema adsmltypelibrary-2_0-as_xsd Drilldown into AreaCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into CountryCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into PhoneNumber in schema adsmltypelibrary-2_0-as_xsd Drilldown into Type in schema adsmltypelibrary-2_0-as_xsd Drilldown into Usage in schema adsmltypelibrary-2_0-as_xsd Drilldown into FormalIdentifier in schema adsmltypelibrary-2_0-as_xsd Drilldown into priority in schema adsmltypelibrary-2_0-as_xsd Drilldown into CommunicationChannel.BaseType in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of PhoneAddressType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PhoneAddressType">
    <xs:complexContent>
        <xs:extension base="CommunicationChannel.BaseType">
            <xs:sequence>
                <xs:element name="Type" type="PhoneTypeCV" />
                <xs:element ref="PhoneNumber" />
                <xs:element name="CountryCode" type="ShortStringType" minOccurs="0" />
                <xs:element ref="AreaCode" minOccurs="0" />
                <xs:element ref="SubscriberNo" minOccurs="0" />
                <xs:element ref="Extension" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormalIdentifier adsml:FormalIdentifier 0 (1)
Usage adsml:Usage 0 unbounded
Type adsml:Type (1) (1)
PhoneNumber adsml:PhoneNumber (1) (1)
CountryCode adsml:CountryCode 0 (1)
AreaCode adsml:AreaCode 0 (1)
SubscriberNo adsml:SubscriberNo 0 (1)
Extension adsml:Extension 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
priority adsml:priority Optional
Collapse Derivation Tree:
Collapse References:
adsml:CommunicationChannel.Phone
