Documentation for AdsML
Definition Type: ComplexType
Name: PhysicalAddressType
Namespace: http://www.adsml.org/typelibrary/2.0
Type: adsml:CommunicationChannel.BaseType
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract
Collapse XSD Schema Diagram:

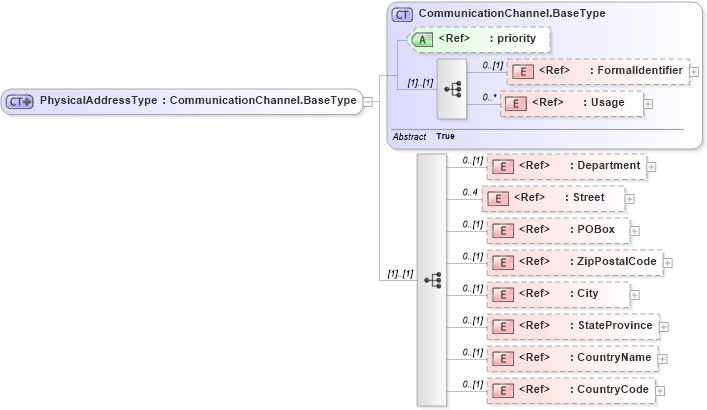

Drilldown into CountryCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into CountryName in schema adsmltypelibrary-2_0-as_xsd Drilldown into StateProvince in schema adsmltypelibrary-2_0-as_xsd Drilldown into City in schema adsmltypelibrary-2_0-as_xsd Drilldown into ZipPostalCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into POBox in schema adsmltypelibrary-2_0-as_xsd Drilldown into Street in schema adsmltypelibrary-2_0-as_xsd Drilldown into Department in schema adsmltypelibrary-2_0-as_xsd Drilldown into Usage in schema adsmltypelibrary-2_0-as_xsd Drilldown into FormalIdentifier in schema adsmltypelibrary-2_0-as_xsd Drilldown into priority in schema adsmltypelibrary-2_0-as_xsd Drilldown into CommunicationChannel.BaseType in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of PhysicalAddressType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PhysicalAddressType">
    <xs:complexContent>
        <xs:extension base="CommunicationChannel.BaseType">
            <xs:sequence>
                <xs:element ref="Department" minOccurs="0" />
                <xs:element ref="Street" minOccurs="0" maxOccurs="4" />
                <xs:element ref="POBox" minOccurs="0" />
                <xs:element ref="ZipPostalCode" minOccurs="0" />
                <xs:element ref="City" minOccurs="0" />
                <xs:element ref="StateProvince" minOccurs="0" />
                <xs:element ref="CountryName" minOccurs="0" />
                <xs:element ref="CountryCode" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormalIdentifier adsml:FormalIdentifier 0 (1)
Usage adsml:Usage 0 unbounded
Department adsml:Department 0 (1)
Street adsml:Street 0 4
POBox adsml:POBox 0 (1)
ZipPostalCode adsml:ZipPostalCode 0 (1)
City adsml:City 0 (1)
StateProvince adsml:StateProvince 0 (1)
CountryName adsml:CountryName 0 (1)
CountryCode adsml:CountryCode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
priority adsml:priority Optional
Collapse Derivation Tree:
Collapse References:
adsml-fi:Address, adsml:CardHoldersAddress, adsml:CommunicationChannel.PhysicalAddress, adsml:JurisdictionRegionAddress, adsml:RegistrationAddress
