Documentation for AdsML
Definition Type: ComplexType
Name: PlacementInBookType
Namespace: http://www.adsml.org/adsmlbookings/2.0
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract

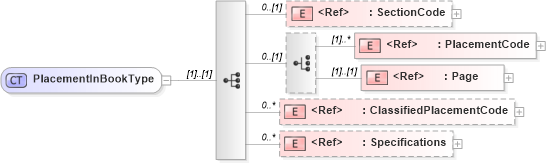

Collapse XSD Schema Diagram:
Drilldown into Specifications in schema adsmltypelibrary-2_0-as_xsd Drilldown into ClassifiedPlacementCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Page in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PlacementCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into SectionCode in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of PlacementInBookType in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PlacementInBookType">
    <xs:sequence>
        <xs:element ref="SectionCode" minOccurs="0" />
        <xs:choice minOccurs="0">
            <xs:element ref="PlacementCode" maxOccurs="unbounded" />
            <xs:element ref="Page" />
        </xs:choice>
        <xs:element ref="ClassifiedPlacementCode" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:Specifications" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SectionCode adsml-bo:SectionCode 0 (1)
PlacementCode adsml-bo:PlacementCode (1) unbounded
Page adsml-bo:Page (1) (1)
ClassifiedPlacementCode adsml-bo:ClassifiedPlacementCode 0 unbounded
Specifications adsml:Specifications 0 unbounded
Collapse Derivation Tree:
Collapse References:
adsml-bo:PlacementInBook, adsml-bo:PlacementInBook
