Documentation for AdsML
Definition Type: ComplexType
Name: PlacementType.Base
Namespace: http://www.adsml.org/adsmlbookings/2.0
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract

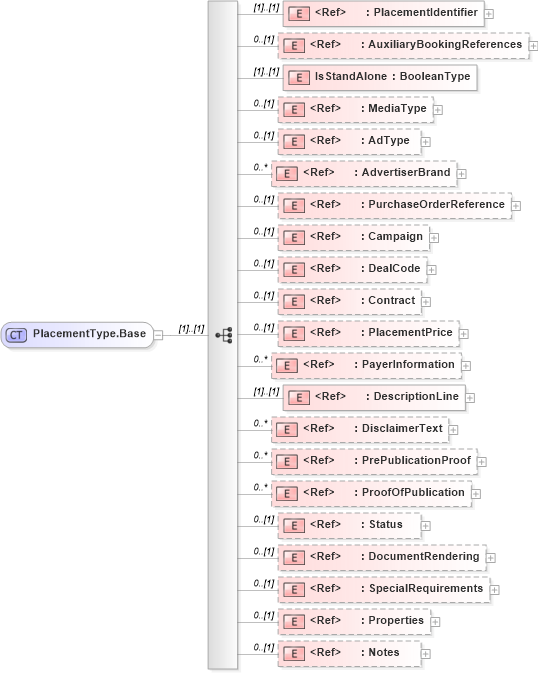

Collapse XSD Schema Diagram:
Drilldown into Notes in schema adsmltypelibrary-2_0-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProofOfPublication in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PrePublicationProof in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into DisclaimerText in schema adsmltypelibrary-2_0-as_xsd Drilldown into DescriptionLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into PayerInformation in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PlacementPrice in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Contract in schema adsmltypelibrary-2_0-as_xsd Drilldown into DealCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into PurchaseOrderReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdvertiserBrand in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdType in schema adsmltypelibrary-2_0-as_xsd Drilldown into MediaType in schema adsmltypelibrary-2_0-as_xsd Drilldown into IsStandAlone in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PlacementIdentifier in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of PlacementType.Base in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PlacementType.Base">
    <xs:sequence>
        <xs:element ref="PlacementIdentifier" />
        <xs:element ref="AuxiliaryBookingReferences" minOccurs="0" />
        <xs:element name="IsStandAlone" type="adsml:BooleanType" />
        <xs:element ref="adsml:MediaType" minOccurs="0" />
        <xs:element ref="adsml:AdType" minOccurs="0" />
        <xs:element ref="AdvertiserBrand" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:PurchaseOrderReference" minOccurs="0" />
        <xs:element ref="adsml:Campaign" minOccurs="0" />
        <xs:element ref="DealCode" minOccurs="0" />
        <xs:element ref="adsml:Contract" minOccurs="0" />
        <xs:element ref="PlacementPrice" minOccurs="0" />
        <xs:element ref="PayerInformation" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:DescriptionLine" />
        <xs:element ref="adsml:DisclaimerText" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="PrePublicationProof" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="ProofOfPublication" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:Status" minOccurs="0" />
        <xs:element ref="adsml:DocumentRendering" minOccurs="0" />
        <xs:element ref="adsml:SpecialRequirements" minOccurs="0" />
        <xs:element ref="adsml:Properties" minOccurs="0" />
        <xs:element ref="adsml:Notes" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlacementIdentifier adsml-bo:PlacementIdentifier (1) (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
IsStandAlone adsml-bo:IsStandAlone (1) (1)
MediaType adsml:MediaType 0 (1)
AdType adsml:AdType 0 (1)
AdvertiserBrand adsml-bo:AdvertiserBrand 0 unbounded
PurchaseOrderReference adsml:PurchaseOrderReference 0 (1)
Campaign adsml:Campaign 0 (1)
DealCode adsml-bo:DealCode 0 (1)
Contract adsml:Contract 0 (1)
PlacementPrice adsml-bo:PlacementPrice 0 (1)
PayerInformation adsml-bo:PayerInformation 0 unbounded
DescriptionLine adsml:DescriptionLine (1) (1)
DisclaimerText adsml:DisclaimerText 0 unbounded
PrePublicationProof adsml-bo:PrePublicationProof 0 unbounded
ProofOfPublication adsml-bo:ProofOfPublication 0 unbounded
Status adsml:Status 0 (1)
DocumentRendering adsml:DocumentRendering 0 (1)
SpecialRequirements adsml:SpecialRequirements 0 (1)
Properties adsml:Properties 0 (1)
Notes adsml:Notes 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-bo:Placementadsml-bo:Placement.Generic, adsml-bo:Placement.Insert, adsml-bo:Placement.NewspaperMagazine,
