Documentation for AdsML
Definition Type: Element
Name: PositionOnPage
Namespace: http://www.adsml.org/adsmlbookings/2.0
Type: adsml:PositionOnPageType
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

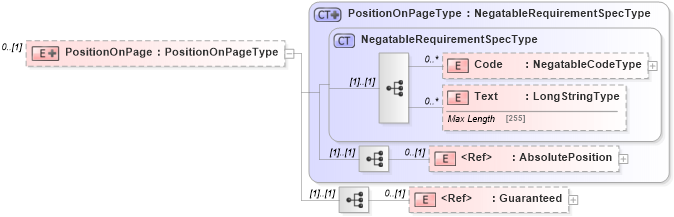

Collapse XSD Schema Diagram:
Drilldown into Guaranteed in schema adsmltypelibrary-2_0-as_xsd Drilldown into AbsolutePosition in schema adsmltypelibrary-2_0-as_xsd Drilldown into Text in schema adsmltypelibrary-2_0-as_xsd Drilldown into Code in schema adsmltypelibrary-2_0-as_xsd Drilldown into NegatableRequirementSpecType in schema adsmltypelibrary-2_0-as_xsd Drilldown into PositionOnPageType in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of PositionOnPage in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="PositionOnPage" minOccurs="0">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="adsml:PositionOnPageType">
                <xs:sequence>
                    <xs:element ref="adsml:Guaranteed" minOccurs="0" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code adsml:Code 0 unbounded
Text adsml:Text 0 unbounded
AbsolutePosition adsml:AbsolutePosition 0 (1)
Guaranteed adsml:Guaranteed 0 (1)
Collapse Derivation Tree:
