Documentation for AdsML
Definition Type: Element
Name: ProofOfPublication
Namespace: http://www.adsml.org/adsmlproofofpublication/1.0
Containing Schema: AdsMLProofOfPublication-1.0-PublicTypeLibrary-AS.xsd
Abstract

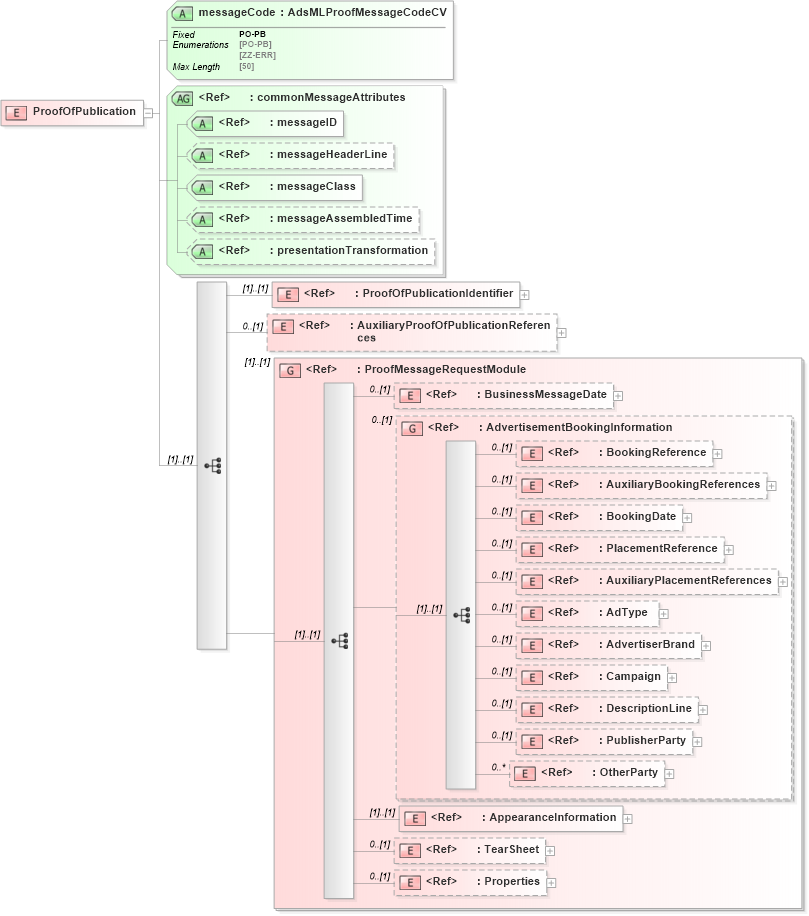

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into TearSheet in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into AppearanceInformation in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into PublisherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into DescriptionLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdvertiserBrand in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdType in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryPlacementReferences in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into PlacementReference in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into BookingDate in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into BookingReference in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into AdvertisementBookingInformation in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProofMessageRequestModule in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into AuxiliaryProofOfPublicationReferences in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into ProofOfPublicationIdentifier in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsdXSD Diagram of ProofOfPublication in schema adsmlproofofpublication-1_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="ProofOfPublication">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ProofOfPublicationIdentifier" />
            <xs:element ref="AuxiliaryProofOfPublicationReferences" minOccurs="0" />
            <xs:group ref="ProofMessageRequestModule" />
        </xs:sequence>
        <xs:attribute name="messageCode" type="AdsMLProofMessageCodeCV" use="required" fixed="PO-PB" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProofOfPublicationIdentifier adsml-pp:ProofOfPublicationIdentifier (1) (1)
AuxiliaryProofOfPublicationReferences adsml-pp:AuxiliaryProofOfPublicationReferences 0 (1)
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
BookingReference adsml-bo:BookingReference 0 (1)
AuxiliaryBookingReferences adsml-pp:AuxiliaryBookingReferences 0 (1)
BookingDate adsml-bo:BookingDate 0 (1)
PlacementReference adsml-bo:PlacementReference 0 (1)
AuxiliaryPlacementReferences adsml-pp:AuxiliaryPlacementReferences 0 (1)
AdType adsml:AdType 0 (1)
AdvertiserBrand adsml-bo:AdvertiserBrand 0 (1)
Campaign adsml:Campaign 0 (1)
DescriptionLine adsml:DescriptionLine 0 (1)
PublisherParty adsml:PublisherParty 0 (1)
OtherParty adsml:OtherParty 0 unbounded
AppearanceInformation adsml-pp:AppearanceInformation (1) (1)
TearSheet adsml-pp:TearSheet 0 (1)
Properties adsml:Properties 0 (1)
<xs:group> adsml-pp:ProofMessageRequestModule (1) (1)
<xs:group> adsml-pp:AdvertisementBookingInformation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml-pp:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
