Documentation for AdsML
Definition Type: Element
Name: Publication
Namespace: http://www.adsml.org/adsmlbookings/2.0
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract

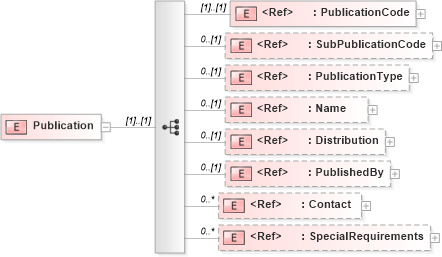

Collapse XSD Schema Diagram:
Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into Contact in schema adsmltypelibrary-2_0-as_xsd Drilldown into PublishedBy in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Distribution in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into Name in schema adsmltypelibrary-2_0-as_xsd Drilldown into PublicationType in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into SubPublicationCode in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into PublicationCode in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of Publication in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="Publication">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="PublicationCode" />
            <xs:element ref="SubPublicationCode" minOccurs="0" />
            <xs:element ref="PublicationType" minOccurs="0" />
            <xs:element ref="adsml:Name" minOccurs="0" />
            <xs:element ref="Distribution" minOccurs="0" />
            <xs:element ref="PublishedBy" minOccurs="0" />
            <xs:element ref="adsml:Contact" minOccurs="0" maxOccurs="unbounded" />
            <xs:element ref="adsml:SpecialRequirements" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PublicationCode adsml-bo:PublicationCode (1) (1)
SubPublicationCode adsml-bo:SubPublicationCode 0 (1)
PublicationType adsml-bo:PublicationType 0 (1)
Name adsml:Name 0 (1)
Distribution adsml-bo:Distribution 0 (1)
PublishedBy adsml-bo:PublishedBy 0 (1)
Contact adsml:Contact 0 unbounded
SpecialRequirements adsml:SpecialRequirements 0 unbounded
