Documentation for AdsML
Definition Type: Element
Name: RecurrencePeriod
Namespace: http://www.adsml.org/adsmlbookings/2.0
Containing Schema: AdsMLBookings-2.0-PublicTypeLibrary-AS.xsd
Abstract

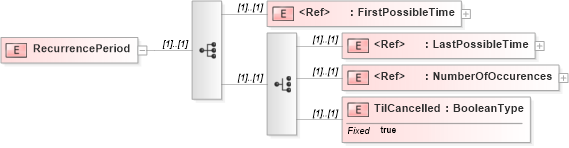

Collapse XSD Schema Diagram:
Drilldown into TilCancelled in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into NumberOfOccurences in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into LastPossibleTime in schema adsmlbookings-2_0-publictypelibrary-as_xsd Drilldown into FirstPossibleTime in schema adsmlbookings-2_0-publictypelibrary-as_xsdXSD Diagram of RecurrencePeriod in schema adsmlbookings-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="RecurrencePeriod">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="FirstPossibleTime" />
            <xs:choice>
                <xs:element ref="LastPossibleTime" />
                <xs:element ref="NumberOfOccurences" />
                <xs:element name="TilCancelled" type="adsml:BooleanType" fixed="true" />
            </xs:choice>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FirstPossibleTime adsml-bo:FirstPossibleTime (1) (1)
LastPossibleTime adsml-bo:LastPossibleTime (1) (1)
NumberOfOccurences adsml-bo:NumberOfOccurences (1) (1)
TilCancelled adsml-bo:TilCancelled (1) (1)
