Documentation for AdsML
Definition Type: Element
Name: SoftProofTicket
Namespace: http://www.adsml.org/adsmlmaterials/2.0
Containing Schema: AdsMLMaterials-2.0-PublicTypeLibrary-AS.xsd
Abstract

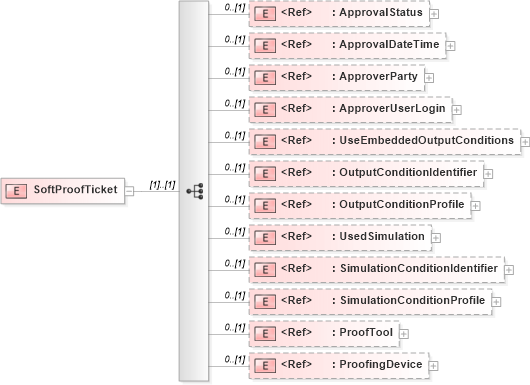

Collapse XSD Schema Diagram:
Drilldown into ProofingDevice in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into ProofTool in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into SimulationConditionProfile in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into SimulationConditionIdentifier in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into UsedSimulation in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into OutputConditionProfile in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into OutputConditionIdentifier in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into UseEmbeddedOutputConditions in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into ApproverUserLogin in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into ApproverParty in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into ApprovalDateTime in schema adsmlmaterials-2_0-publictypelibrary-as_xsd Drilldown into ApprovalStatus in schema adsmlmaterials-2_0-publictypelibrary-as_xsdXSD Diagram of SoftProofTicket in schema adsmlmaterials-2_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="SoftProofTicket">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ApprovalStatus" minOccurs="0" />
            <xs:element ref="ApprovalDateTime" minOccurs="0" />
            <xs:element ref="ApproverParty" minOccurs="0" />
            <xs:element ref="ApproverUserLogin" minOccurs="0" />
            <xs:element ref="UseEmbeddedOutputConditions" minOccurs="0" />
            <xs:element ref="OutputConditionIdentifier" minOccurs="0" />
            <xs:element ref="OutputConditionProfile" minOccurs="0" />
            <xs:element ref="UsedSimulation" minOccurs="0" />
            <xs:element ref="SimulationConditionIdentifier" minOccurs="0" />
            <xs:element ref="SimulationConditionProfile" minOccurs="0" />
            <xs:element ref="ProofTool" minOccurs="0" />
            <xs:element ref="ProofingDevice" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApprovalStatus adsml-ma:ApprovalStatus 0 (1)
ApprovalDateTime adsml-ma:ApprovalDateTime 0 (1)
ApproverParty adsml-ma:ApproverParty 0 (1)
ApproverUserLogin adsml-ma:ApproverUserLogin 0 (1)
UseEmbeddedOutputConditions adsml-ma:UseEmbeddedOutputConditions 0 (1)
OutputConditionIdentifier adsml-ma:OutputConditionIdentifier 0 (1)
OutputConditionProfile adsml-ma:OutputConditionProfile 0 (1)
UsedSimulation adsml-ma:UsedSimulation 0 (1)
SimulationConditionIdentifier adsml-ma:SimulationConditionIdentifier 0 (1)
SimulationConditionProfile adsml-ma:SimulationConditionProfile 0 (1)
ProofTool adsml-ma:ProofTool 0 (1)
ProofingDevice adsml-ma:ProofingDevice 0 (1)
