Documentation for AdsML
Definition Type: Element
Name: AdMaterial
Namespace: http://www.adsml.org/adsmlmaterials/2.5
Containing Schema: AdsMLMaterials-2.5-PublicTypeLibrary-AS.xsd
Abstract

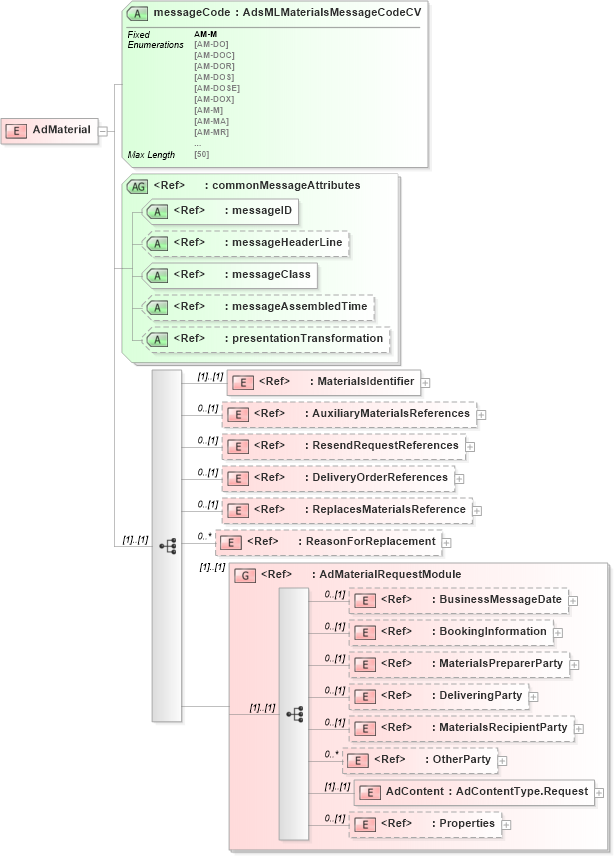

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdContent in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into MaterialsRecipientParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into DeliveringParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into MaterialsPreparerParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingInformation in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into BusinessMessageDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdMaterialRequestModule in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into ReasonForReplacement in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into ReplacesMaterialsReference in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into DeliveryOrderReferences in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into ResendRequestReferences in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into AuxiliaryMaterialsReferences in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into MaterialsIdentifier in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlmaterials-2_5-publictypelibrary-as_xsdXSD Diagram of AdMaterial in schema adsmlmaterials-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="AdMaterial">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="MaterialsIdentifier" />
            <xs:element ref="AuxiliaryMaterialsReferences" minOccurs="0" />
            <xs:element ref="ResendRequestReferences" minOccurs="0" />
            <xs:element ref="DeliveryOrderReferences" minOccurs="0" />
            <xs:element ref="ReplacesMaterialsReference" minOccurs="0" />
            <xs:element ref="ReasonForReplacement" minOccurs="0" maxOccurs="unbounded" />
            <xs:group ref="AdMaterialRequestModule" />
        </xs:sequence>
        <xs:attribute name="messageCode" type="AdsMLMaterialsMessageCodeCV" use="required" fixed="AM-M" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MaterialsIdentifier adsml-ma:MaterialsIdentifier (1) (1)
AuxiliaryMaterialsReferences adsml-ma:AuxiliaryMaterialsReferences 0 (1)
ResendRequestReferences adsml-ma:ResendRequestReferences 0 (1)
DeliveryOrderReferences adsml-ma:DeliveryOrderReferences 0 (1)
ReplacesMaterialsReference adsml-ma:ReplacesMaterialsReference 0 (1)
ReasonForReplacement adsml-ma:ReasonForReplacement 0 unbounded
BusinessMessageDate adsml:BusinessMessageDate 0 (1)
BookingInformation adsml-ma:BookingInformation 0 (1)
MaterialsPreparerParty adsml:MaterialsPreparerParty 0 (1)
DeliveringParty adsml:DeliveringParty 0 (1)
MaterialsRecipientParty adsml:MaterialsRecipientParty 0 (1)
OtherParty adsml:OtherParty 0 unbounded
AdContent adsml-ma:AdContent (1) (1)
Properties adsml:Properties 0 (1)
<xs:group> adsml-ma:AdMaterialRequestModule (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode adsml-ma:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
