Documentation for AdsML
Definition Type: ComplexType
Name: AuxiliaryBookingReferencesType
Namespace: http://www.adsml.org/adsmlbookings/2.5
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract
Collapse XSD Schema Diagram:

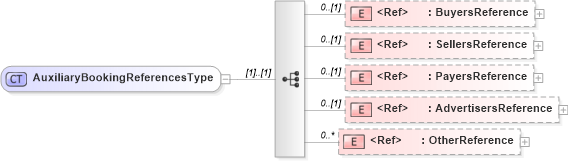

Drilldown into OtherReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdvertisersReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into PayersReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into SellersReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into BuyersReference in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of AuxiliaryBookingReferencesType in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="AuxiliaryBookingReferencesType">
    <xs:sequence>
        <xs:element ref="adsml:BuyersReference" minOccurs="0" />
        <xs:element ref="adsml:SellersReference" minOccurs="0" />
        <xs:element ref="adsml:PayersReference" minOccurs="0" />
        <xs:element ref="adsml:AdvertisersReference" minOccurs="0" />
        <xs:element ref="adsml:OtherReference" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BuyersReference adsml:BuyersReference 0 (1)
SellersReference adsml:SellersReference 0 (1)
PayersReference adsml:PayersReference 0 (1)
AdvertisersReference adsml:AdvertisersReference 0 (1)
OtherReference adsml:OtherReference 0 unbounded
Collapse Derivation Tree:
Collapse References:
adsml-bo:AuxiliaryBookingReferences, adsml-bo:AuxiliaryPlacementGroupReferences, adsml-bo:AuxiliaryPlacementReferences
