Documentation for AdsML
Definition Type: Element
Name: CampaignDescription
Namespace: http://www.adsml.org/adsmlbookings/2.5
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract

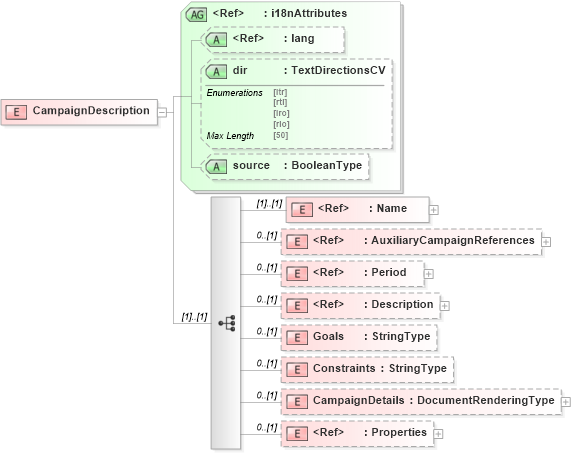

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into CampaignDetails in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Constraints in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Goals in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Description in schema adsmltypelibrary-2_0-as_xsd Drilldown into Period in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into AuxiliaryCampaignReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Name in schema adsmltypelibrary-2_0-as_xsd Drilldown into source in schema adsmltypelibrary-2_0-as_xsd Drilldown into dir in schema adsmltypelibrary-2_0-as_xsd Drilldown into lang in schema xml_xsd Drilldown into i18nAttributes in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of CampaignDescription in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="CampaignDescription">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="adsml:Name" />
            <xs:element ref="AuxiliaryCampaignReferences" minOccurs="0" />
            <xs:element ref="Period" minOccurs="0" />
            <xs:element ref="adsml:Description" minOccurs="0" />
            <xs:element name="Goals" type="adsml:StringType" minOccurs="0" />
            <xs:element name="Constraints" type="adsml:StringType" minOccurs="0" />
            <xs:element name="CampaignDetails" type="adsml:DocumentRenderingType" minOccurs="0" />
            <xs:element ref="adsml:Properties" minOccurs="0" />
        </xs:sequence>
        <xs:attributeGroup ref="adsml:i18nAttributes" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name adsml:Name (1) (1)
AuxiliaryCampaignReferences adsml-bo:AuxiliaryCampaignReferences 0 (1)
Period adsml-bo:Period 0 (1)
Description adsml:Description 0 (1)
Goals adsml-bo:Goals 0 (1)
Constraints adsml-bo:Constraints 0 (1)
CampaignDetails adsml-bo:CampaignDetails 0 (1)
Properties adsml:Properties 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang xml:lang Optional
dir adsml:dir Optional
source adsml:source Optional
