Documentation for AdsML
Definition Type: ComplexType
Name: ContactType
Namespace: http://www.adsml.org/adsmlenvelope/1.1
Containing Schema: AdsMLEnvelope-1.1-Main-AS.xsd
Abstract

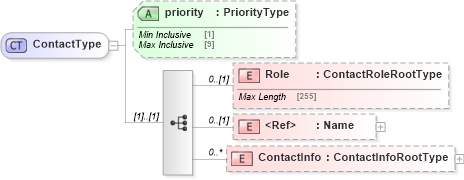

Collapse XSD Schema Diagram:
Drilldown into ContactInfo in schema adsmlenvelope-1_1-main-as_xsd Drilldown into Name in schema adsmltypelibrary-2_0-as_xsd Drilldown into Role in schema adsmlenvelope-1_1-main-as_xsd Drilldown into priority in schema adsmlenvelope-1_1-main-as_xsdXSD Diagram of ContactType in schema adsmlenvelope-1_1-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="ContactType">
    <xs:sequence>
        <xs:element name="Role" type="adsml:ContactRoleRootType" minOccurs="0" />
        <xs:element ref="adsml:Name" minOccurs="0" />
        <xs:element name="ContactInfo" type="ContactInfoRootType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attribute name="priority" type="adsml:PriorityType" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Role nsA:Role 0 (1)
Name adsml:Name 0 (1)
ContactInfo nsA:ContactInfo 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
priority nsA:priority Optional
Collapse Derivation Tree:
Collapse References:
nsA:Contact
