Documentation for AdsML
Definition Type: Element
Name: Delivery.TearSheet
Namespace: http://www.adsml.org/adsmlproofofpublication/1.5
Type: adsml-pp:TearSheetDeliveryType.RequestResponse
Containing Schema: AdsMLProofOfPublication-1.5-PublicTypeLibrary-AS.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

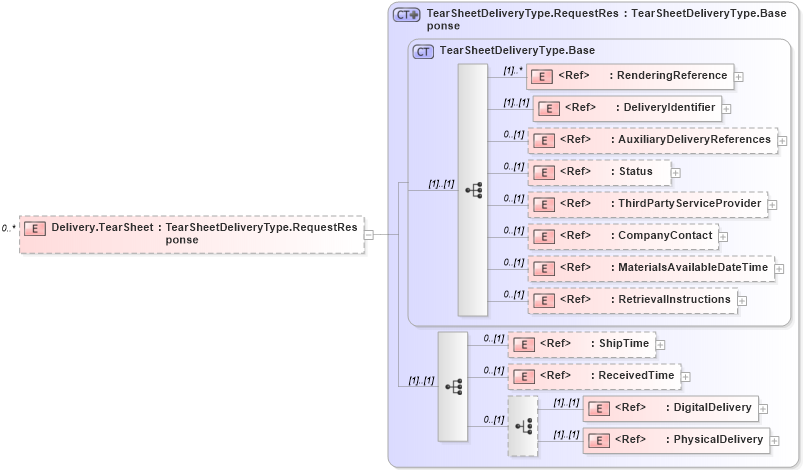

Collapse XSD Schema Diagram:
Drilldown into PhysicalDelivery in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into DigitalDelivery in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into ReceivedTime in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into ShipTime in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into RetrievalInstructions in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into MaterialsAvailableDateTime in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into CompanyContact in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into ThirdPartyServiceProvider in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryDeliveryReferences in schema adsmlproofofpublication-1_5-publictypelibrary-as_xsd Drilldown into DeliveryIdentifier in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into RenderingReference in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into TearSheetDeliveryType.Base in schema adsmlproofofpublication-1_5-publictypelibrary-as_xsd Drilldown into TearSheetDeliveryType.RequestResponse in schema adsmlproofofpublication-1_5-publictypelibrary-as_xsdXSD Diagram of Delivery.TearSheet in schema adsmlproofofpublication-1_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="Delivery.TearSheet" type="TearSheetDeliveryType.RequestResponse" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RenderingReference adsml-ma:RenderingReference (1) unbounded
DeliveryIdentifier adsml-ma:DeliveryIdentifier (1) (1)
AuxiliaryDeliveryReferences adsml-pp:AuxiliaryDeliveryReferences 0 (1)
Status adsml:Status 0 (1)
ThirdPartyServiceProvider adsml-ma:ThirdPartyServiceProvider 0 (1)
CompanyContact adsml-ma:CompanyContact 0 (1)
MaterialsAvailableDateTime adsml-ma:MaterialsAvailableDateTime 0 (1)
RetrievalInstructions adsml-ma:RetrievalInstructions 0 (1)
ShipTime adsml-ma:ShipTime 0 (1)
ReceivedTime adsml-ma:ReceivedTime 0 (1)
DigitalDelivery adsml-ma:DigitalDelivery (1) (1)
PhysicalDelivery adsml-ma:PhysicalDelivery (1) (1)
Collapse Derivation Tree:
