Documentation for AdsML
Definition Type: ComplexType
Name: ExchangeRateType
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract
Collapse XSD Schema Diagram:

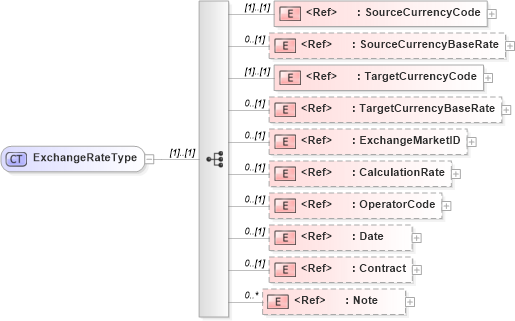

Drilldown into Note in schema adsmltypelibrary-2_0-as_xsd Drilldown into Contract in schema adsmltypelibrary-2_0-as_xsd Drilldown into Date in schema adsmltypelibrary-2_0-as_xsd Drilldown into OperatorCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into CalculationRate in schema adsmltypelibrary-2_0-as_xsd Drilldown into ExchangeMarketID in schema adsmltypelibrary-2_0-as_xsd Drilldown into TargetCurrencyBaseRate in schema adsmltypelibrary-2_0-as_xsd Drilldown into TargetCurrencyCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into SourceCurrencyBaseRate in schema adsmltypelibrary-2_0-as_xsd Drilldown into SourceCurrencyCode in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of ExchangeRateType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="ExchangeRateType">
    <xs:sequence>
        <xs:element ref="SourceCurrencyCode" />
        <xs:element ref="SourceCurrencyBaseRate" minOccurs="0" />
        <xs:element ref="TargetCurrencyCode" />
        <xs:element ref="TargetCurrencyBaseRate" minOccurs="0" />
        <xs:element ref="ExchangeMarketID" minOccurs="0" />
        <xs:element ref="CalculationRate" minOccurs="0" />
        <xs:element ref="OperatorCode" minOccurs="0" />
        <xs:element ref="Date" minOccurs="0" />
        <xs:element ref="Contract" minOccurs="0" />
        <xs:element ref="Note" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SourceCurrencyCode adsml:SourceCurrencyCode (1) (1)
SourceCurrencyBaseRate adsml:SourceCurrencyBaseRate 0 (1)
TargetCurrencyCode adsml:TargetCurrencyCode (1) (1)
TargetCurrencyBaseRate adsml:TargetCurrencyBaseRate 0 (1)
ExchangeMarketID adsml:ExchangeMarketID 0 (1)
CalculationRate adsml:CalculationRate 0 (1)
OperatorCode adsml:OperatorCode 0 (1)
Date adsml:Date 0 (1)
Contract adsml:Contract 0 (1)
Note adsml:Note 0 unbounded
Collapse Derivation Tree:
Collapse References:
adsml:ExchangeRate
