Documentation for AdsML
Definition Type: ComplexType
Name: ForDeliveryToType
Namespace: http://www.adsml.org/adsmlmaterials/2.5
Containing Schema: AdsMLMaterials-2.5-PublicTypeLibrary-AS.xsd
Abstract

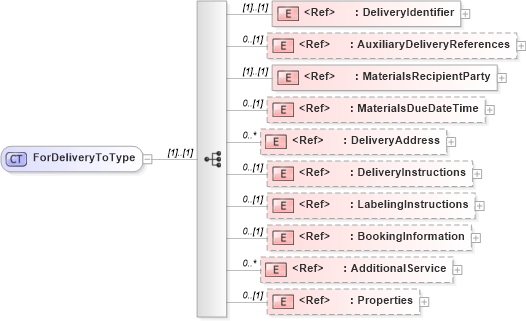

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdditionalService in schema adsmltypelibrary-2_0-as_xsd Drilldown into BookingInformation in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into LabelingInstructions in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into DeliveryInstructions in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into DeliveryAddress in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into MaterialsDueDateTime in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into MaterialsRecipientParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryDeliveryReferences in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into DeliveryIdentifier in schema adsmlmaterials-2_5-publictypelibrary-as_xsdXSD Diagram of ForDeliveryToType in schema adsmlmaterials-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="ForDeliveryToType">
    <xs:sequence>
        <xs:element ref="DeliveryIdentifier" />
        <xs:element ref="AuxiliaryDeliveryReferences" minOccurs="0" />
        <xs:element ref="adsml:MaterialsRecipientParty" />
        <xs:element ref="MaterialsDueDateTime" minOccurs="0" />
        <xs:element ref="DeliveryAddress" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="DeliveryInstructions" minOccurs="0" />
        <xs:element ref="LabelingInstructions" minOccurs="0" />
        <xs:element ref="BookingInformation" minOccurs="0" />
        <xs:element ref="adsml:AdditionalService" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:Properties" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DeliveryIdentifier adsml-ma:DeliveryIdentifier (1) (1)
AuxiliaryDeliveryReferences adsml-ma:AuxiliaryDeliveryReferences 0 (1)
MaterialsRecipientParty adsml:MaterialsRecipientParty (1) (1)
MaterialsDueDateTime adsml-ma:MaterialsDueDateTime 0 (1)
DeliveryAddress adsml-ma:DeliveryAddress 0 unbounded
DeliveryInstructions adsml-ma:DeliveryInstructions 0 (1)
LabelingInstructions adsml-ma:LabelingInstructions 0 (1)
BookingInformation adsml-ma:BookingInformation 0 (1)
AdditionalService adsml:AdditionalService 0 unbounded
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-ma:ForDeliveryTo, adsml-ma:ForDeliveryTo
