Documentation for AdsML
Definition Type: Element
Name: ItemHeader
Namespace: http://www.adsml.org/adsmlenvelope/1.1
Containing Schema: AdsMLEnvelope-1.1-Main-AS.xsd
Abstract

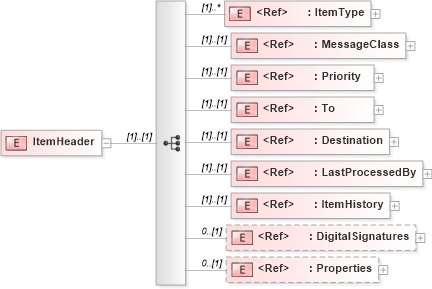

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into DigitalSignatures in schema adsmltypelibrary-2_0-as_xsd Drilldown into ItemHistory in schema adsmlenvelope-1_1-main-as_xsd Drilldown into LastProcessedBy in schema adsmlenvelope-1_1-main-as_xsd Drilldown into Destination in schema adsmlenvelope-1_1-main-as_xsd Drilldown into To in schema adsmlenvelope-1_1-main-as_xsd Drilldown into Priority in schema adsmltypelibrary-2_0-as_xsd Drilldown into MessageClass in schema adsmlenvelope-1_1-main-as_xsd Drilldown into ItemType in schema adsmlenvelope-1_1-main-as_xsdXSD Diagram of ItemHeader in schema adsmlenvelope-1_1-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="ItemHeader">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ItemType" maxOccurs="unbounded" />
            <xs:element ref="MessageClass" />
            <xs:element ref="adsml:Priority" />
            <xs:element ref="To" />
            <xs:element ref="Destination" />
            <xs:element ref="LastProcessedBy" />
            <xs:element ref="ItemHistory" />
            <xs:element ref="adsml:DigitalSignatures" minOccurs="0" />
            <xs:element ref="adsml:Properties" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemType nsA:ItemType (1) unbounded
MessageClass nsA:MessageClass (1) (1)
Priority adsml:Priority (1) (1)
To nsA:To (1) (1)
Destination nsA:Destination (1) (1)
LastProcessedBy nsA:LastProcessedBy (1) (1)
ItemHistory nsA:ItemHistory (1) (1)
DigitalSignatures adsml:DigitalSignatures 0 (1)
Properties adsml:Properties 0 (1)
