Definition Type: ComplexType
Name: LabeledValueType
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract

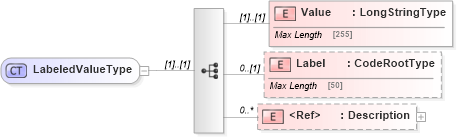

Collapse XSD Schema Diagram:
Drilldown into Description in schema adsmltypelibrary-2_0-as_xsd Drilldown into Label in schema adsmltypelibrary-2_0-as_xsd Drilldown into Value in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of LabeledValueType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="LabeledValueType">
    <xs:sequence>
        <xs:element name="Value" type="LongStringType" />
        <xs:element name="Label" type="CodeRootType" minOccurs="0" />
        <xs:element ref="Description" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Value adsml:Value (1) (1)
Label adsml:Label 0 (1)
Description adsml:Description 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsB:Qualifier, adsml-bo:Reference, adsml:ReferenceValueType, adsml:Specification
