Documentation for AdsML
Definition Type: Element
Name: MessageError
Namespace: http://www.adsml.org/adsmlenvelope/1.1
Containing Schema: AdsMLEnvelope-1.1-Main-AS.xsd
Abstract

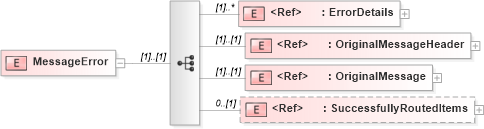

Collapse XSD Schema Diagram:
Drilldown into SuccessfullyRoutedItems in schema adsmlenvelope-1_1-main-as_xsd Drilldown into OriginalMessage in schema adsmlenvelope-1_1-main-as_xsd Drilldown into OriginalMessageHeader in schema adsmlenvelope-1_1-main-as_xsd Drilldown into ErrorDetails in schema adsmlenvelope-1_1-main-as_xsdXSD Diagram of MessageError in schema adsmlenvelope-1_1-main-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="MessageError">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="ErrorDetails" maxOccurs="unbounded" />
            <xs:element ref="OriginalMessageHeader" />
            <xs:element ref="OriginalMessage" />
            <xs:element ref="SuccessfullyRoutedItems" minOccurs="0" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ErrorDetails nsA:ErrorDetails (1) unbounded
OriginalMessageHeader nsA:OriginalMessageHeader (1) (1)
OriginalMessage nsA:OriginalMessage (1) (1)
SuccessfullyRoutedItems nsA:SuccessfullyRoutedItems 0 (1)
