Documentation for AdsML
Definition Type: ComplexType
Name: ObjectDefinitionType
Namespace: http://www.adsml.org/adsmlstructureddescriptions/1.0
Containing Schema: AdsMLStructuredDescriptions-1.0-PublicTypeLibrary-AS.xsd
Abstract

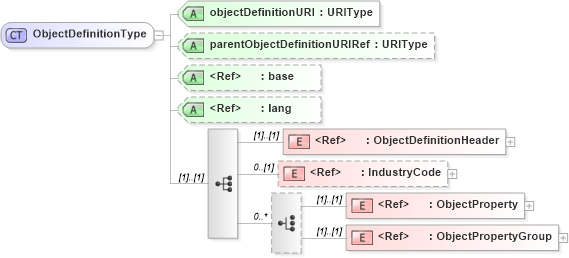

Collapse XSD Schema Diagram:
Drilldown into ObjectPropertyGroup in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into ObjectProperty in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into IndustryCode in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into ObjectDefinitionHeader in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into lang in schema xml_xsd Drilldown into base in schema xml_xsd Drilldown into parentObjectDefinitionURIRef in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into objectDefinitionURI in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsdXSD Diagram of ObjectDefinitionType in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="ObjectDefinitionType">
    <xs:sequence>
        <xs:element ref="ObjectDefinitionHeader" />
        <xs:element ref="IndustryCode" minOccurs="0" />
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="ObjectProperty" />
            <xs:element ref="ObjectPropertyGroup" />
        </xs:choice>
    </xs:sequence>
    <xs:attribute name="objectDefinitionURI" type="adsml:URIType" use="required" />
    <xs:attribute name="parentObjectDefinitionURIRef" type="adsml:URIType" use="optional" />
    <xs:attribute ref="xml:base" use="optional" />
    <xs:attribute ref="xml:lang" use="optional" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ObjectDefinitionHeader adsml-sd:ObjectDefinitionHeader (1) (1)
IndustryCode adsml-sd:IndustryCode 0 (1)
ObjectProperty adsml-sd:ObjectProperty (1) (1)
ObjectPropertyGroup adsml-sd:ObjectPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
objectDefinitionURI adsml-sd:objectDefinitionURI Required
parentObjectDefinitionURIRef adsml-sd:parentObjectDefinitionURIRef Optional
base xml:base Optional
lang xml:lang Optional
Collapse Derivation Tree:
Collapse References:
adsml-sd:ObjectDefinition
