Documentation for AdsML
Definition Type: ComplexType
Name: PartyType
Namespace: http://www.adsml.org/typelibrary/2.0
Containing Schema: AdsMLTypeLibrary-2.0-AS.xsd
Abstract

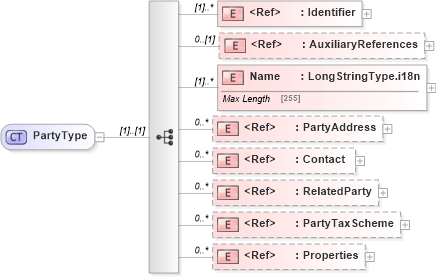

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into PartyTaxScheme in schema adsmltypelibrary-2_0-as_xsd Drilldown into RelatedParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into Contact in schema adsmltypelibrary-2_0-as_xsd Drilldown into PartyAddress in schema adsmltypelibrary-2_0-as_xsd Drilldown into Name in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryReferences in schema adsmltypelibrary-2_0-as_xsd Drilldown into Identifier in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of PartyType in schema adsmltypelibrary-2_0-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PartyType">
    <xs:sequence>
        <xs:element ref="Identifier" maxOccurs="unbounded" />
        <xs:element ref="AuxiliaryReferences" minOccurs="0" />
        <xs:element name="Name" type="LongStringType.i18n" maxOccurs="unbounded" />
        <xs:element ref="PartyAddress" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Contact" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="RelatedParty" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="PartyTaxScheme" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Properties" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier adsml:Identifier (1) unbounded
AuxiliaryReferences adsml:AuxiliaryReferences 0 (1)
Name adsml:Name (1) unbounded
PartyAddress adsml:PartyAddress 0 unbounded
Contact adsml:Contact 0 unbounded
RelatedParty adsml:RelatedParty 0 unbounded
PartyTaxScheme adsml:PartyTaxScheme 0 unbounded
Properties adsml:Properties 0 unbounded
Collapse Derivation Tree:
Collapse References:
adsml:BookingParty, adsml:DeliveringParty, adsml:DeliveryOrderingParty, adsml:InvoicingParty, adsml:MaterialsPreparerParty, adsml:MaterialsRecipientParty, adsml:PayeeParty, adsml:PayerParty, adsml:ProofingParty, adsml:PublisherParty, adsml:SellingParty, adsml:TransmissionFrom, adsml:TransmissionTo
