Documentation for AdsML
Definition Type: ComplexType
Name: PaymentType
Namespace: http://www.adsml.org/adsmlbookings/2.5
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract

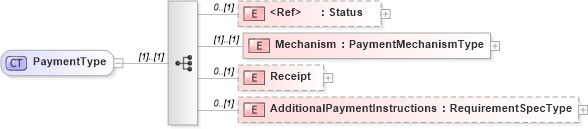

Collapse XSD Schema Diagram:
Drilldown into AdditionalPaymentInstructions in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Receipt in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Mechanism in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsdXSD Diagram of PaymentType in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PaymentType">
    <xs:sequence>
        <xs:element ref="adsml:Status" minOccurs="0" />
        <xs:element name="Mechanism" type="PaymentMechanismType" />
        <xs:element name="Receipt" minOccurs="0">
            <xs:complexType>
                <xs:sequence>
                    <xs:element ref="SendCopyTo" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
                <xs:attribute name="sendToPayer" type="adsml:BooleanType" use="required" fixed="true" />
            </xs:complexType>
        </xs:element>
        <xs:element name="AdditionalPaymentInstructions" type="adsml:RequirementSpecType" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status adsml:Status 0 (1)
Mechanism adsml-bo:Mechanism (1) (1)
Receipt adsml-bo:Receipt 0 (1)
AdditionalPaymentInstructions adsml-bo:AdditionalPaymentInstructions 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-bo:Payment
