Documentation for AdsML
Definition Type: Element
Name: Placement.Insert
Namespace: http://www.adsml.org/adsmlbookings/2.5
Type: adsml-bo:PlacementType.Base
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract

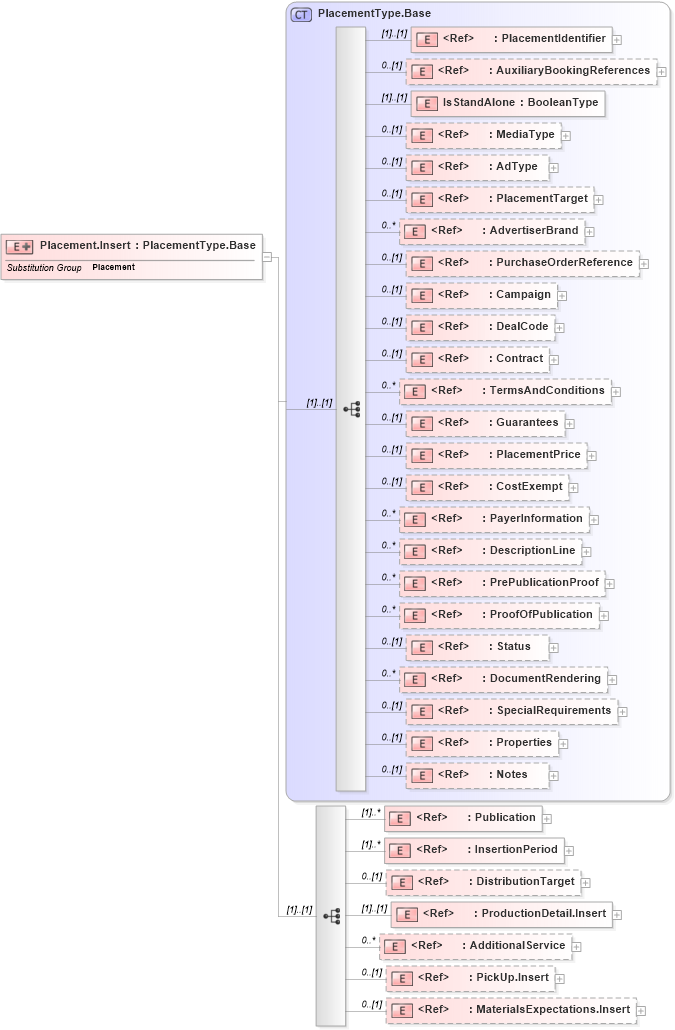

Collapse XSD Schema Diagram:
Drilldown into MaterialsExpectations.Insert in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PickUp.Insert in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into AdditionalService in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProductionDetail.Insert in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into DistributionTarget in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into InsertionPeriod in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Publication in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Notes in schema adsmltypelibrary-2_0-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProofOfPublication in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PrePublicationProof in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into DescriptionLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into PayerInformation in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into CostExempt in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementPrice in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Guarantees in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into TermsAndConditions in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Contract in schema adsmltypelibrary-2_0-as_xsd Drilldown into DealCode in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into PurchaseOrderReference in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdvertiserBrand in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementTarget in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into AdType in schema adsmltypelibrary-2_0-as_xsd Drilldown into MediaType in schema adsmltypelibrary-2_0-as_xsd Drilldown into IsStandAlone in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into AuxiliaryBookingReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementIdentifier in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementType.Base in schema adsmlbookings-2_5-publictypelibrary-as_xsdXSD Diagram of Placement.Insert in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="Placement.Insert" substitutionGroup="Placement">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="PlacementType.Base">
                <xs:sequence>
                    <xs:element ref="Publication" maxOccurs="unbounded" />
                    <xs:element ref="InsertionPeriod" maxOccurs="unbounded" />
                    <xs:element ref="DistributionTarget" minOccurs="0" />
                    <xs:element ref="ProductionDetail.Insert" />
                    <xs:element ref="adsml:AdditionalService" minOccurs="0" maxOccurs="unbounded" />
                    <xs:element ref="PickUp.Insert" minOccurs="0" />
                    <xs:element ref="MaterialsExpectations.Insert" minOccurs="0" />
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlacementIdentifier adsml-bo:PlacementIdentifier (1) (1)
AuxiliaryBookingReferences adsml-bo:AuxiliaryBookingReferences 0 (1)
IsStandAlone adsml-bo:IsStandAlone (1) (1)
MediaType adsml:MediaType 0 (1)
AdType adsml:AdType 0 (1)
PlacementTarget adsml-bo:PlacementTarget 0 (1)
AdvertiserBrand adsml-bo:AdvertiserBrand 0 unbounded
PurchaseOrderReference adsml:PurchaseOrderReference 0 (1)
Campaign adsml:Campaign 0 (1)
DealCode adsml-bo:DealCode 0 (1)
Contract adsml:Contract 0 (1)
TermsAndConditions adsml-bo:TermsAndConditions 0 unbounded
Guarantees adsml-bo:Guarantees 0 (1)
PlacementPrice adsml-bo:PlacementPrice 0 (1)
CostExempt adsml-bo:CostExempt 0 (1)
PayerInformation adsml-bo:PayerInformation 0 unbounded
DescriptionLine adsml:DescriptionLine 0 unbounded
PrePublicationProof adsml-bo:PrePublicationProof 0 unbounded
ProofOfPublication adsml-bo:ProofOfPublication 0 unbounded
Status adsml:Status 0 (1)
DocumentRendering adsml:DocumentRendering 0 unbounded
SpecialRequirements adsml:SpecialRequirements 0 (1)
Properties adsml:Properties 0 (1)
Notes adsml:Notes 0 (1)
Publication adsml-bo:Publication (1) unbounded
InsertionPeriod adsml-bo:InsertionPeriod (1) unbounded
DistributionTarget adsml-bo:DistributionTarget 0 (1)
ProductionDetail.Insert adsml-bo:ProductionDetail.Insert (1) (1)
AdditionalService adsml:AdditionalService 0 unbounded
PickUp.Insert adsml-bo:PickUp.Insert 0 (1)
MaterialsExpectations.Insert adsml-bo:MaterialsExpectations.Insert 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-bo:Placement
