Documentation for AdsML
Definition Type: ComplexType
Name: PlacementInformationType.NewspaperMagazine
Namespace: http://www.adsml.org/adsmlmaterials/2.5
Type: adsml-ma:PlacementInformationType.Base
Containing Schema: AdsMLMaterials-2.5-PublicTypeLibrary-AS.xsd
Abstract

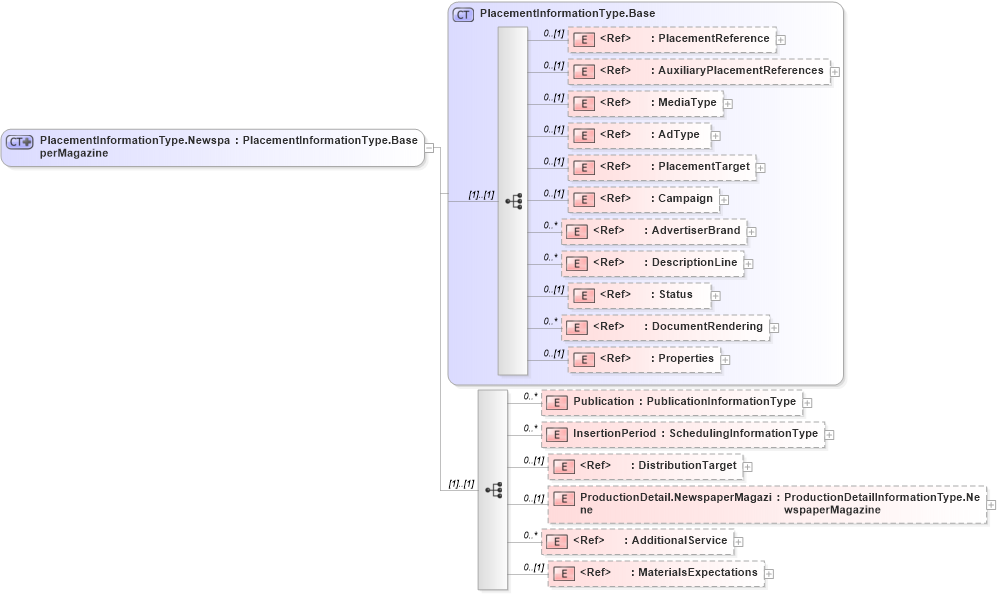

Collapse XSD Schema Diagram:
Drilldown into MaterialsExpectations in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into AdditionalService in schema adsmltypelibrary-2_0-as_xsd Drilldown into ProductionDetail.NewspaperMagazine in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into DistributionTarget in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into InsertionPeriod in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into Publication in schema adsmlmaterials-2_5-publictypelibrary-as_xsd Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into DescriptionLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into AdvertiserBrand in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Campaign in schema adsmltypelibrary-2_0-as_xsd Drilldown into PlacementTarget in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into AdType in schema adsmltypelibrary-2_0-as_xsd Drilldown into MediaType in schema adsmltypelibrary-2_0-as_xsd Drilldown into AuxiliaryPlacementReferences in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementReference in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PlacementInformationType.Base in schema adsmlmaterials-2_5-publictypelibrary-as_xsdXSD Diagram of PlacementInformationType.NewspaperMagazine in schema adsmlmaterials-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PlacementInformationType.NewspaperMagazine">
    <xs:complexContent>
        <xs:extension base="PlacementInformationType.Base">
            <xs:sequence>
                <xs:element name="Publication" type="adsml-bo:PublicationInformationType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="InsertionPeriod" type="adsml-bo:SchedulingInformationType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element ref="adsml-bo:DistributionTarget" minOccurs="0" />
                <xs:element name="ProductionDetail.NewspaperMagazine" type="adsml-bo:ProductionDetailInformationType.NewspaperMagazine" minOccurs="0" />
                <xs:element ref="adsml:AdditionalService" minOccurs="0" maxOccurs="unbounded" />
                <xs:element ref="MaterialsExpectations" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PlacementReference adsml-bo:PlacementReference 0 (1)
AuxiliaryPlacementReferences adsml-bo:AuxiliaryPlacementReferences 0 (1)
MediaType adsml:MediaType 0 (1)
AdType adsml:AdType 0 (1)
PlacementTarget adsml-bo:PlacementTarget 0 (1)
Campaign adsml:Campaign 0 (1)
AdvertiserBrand adsml-bo:AdvertiserBrand 0 unbounded
DescriptionLine adsml:DescriptionLine 0 unbounded
Status adsml:Status 0 (1)
DocumentRendering adsml:DocumentRendering 0 unbounded
Properties adsml:Properties 0 (1)
Publication adsml-ma:Publication 0 unbounded
InsertionPeriod adsml-ma:InsertionPeriod 0 unbounded
DistributionTarget adsml-bo:DistributionTarget 0 (1)
ProductionDetail.NewspaperMagazine adsml-ma:ProductionDetail.NewspaperMagazine 0 (1)
AdditionalService adsml:AdditionalService 0 unbounded
MaterialsExpectations adsml-ma:MaterialsExpectations 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-ma:PlacementInformation.NewspaperMagazine
