Documentation for AdsML
Definition Type: ComplexType
Name: PublicationInformationType
Namespace: http://www.adsml.org/adsmlbookings/2.5
Containing Schema: AdsMLBookings-2.5-PublicTypeLibrary-AS.xsd
Abstract

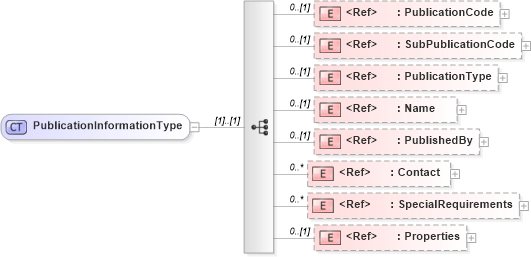

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into SpecialRequirements in schema adsmltypelibrary-2_0-as_xsd Drilldown into Contact in schema adsmltypelibrary-2_0-as_xsd Drilldown into PublishedBy in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into Name in schema adsmltypelibrary-2_0-as_xsd Drilldown into PublicationType in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into SubPublicationCode in schema adsmlbookings-2_5-publictypelibrary-as_xsd Drilldown into PublicationCode in schema adsmlbookings-2_5-publictypelibrary-as_xsdXSD Diagram of PublicationInformationType in schema adsmlbookings-2_5-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:complexType name="PublicationInformationType">
    <xs:sequence>
        <xs:element ref="PublicationCode" minOccurs="0" />
        <xs:element ref="SubPublicationCode" minOccurs="0" />
        <xs:element ref="PublicationType" minOccurs="0" />
        <xs:element ref="adsml:Name" minOccurs="0" />
        <xs:element ref="PublishedBy" minOccurs="0" />
        <xs:element ref="adsml:Contact" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:SpecialRequirements" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="adsml:Properties" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PublicationCode adsml-bo:PublicationCode 0 (1)
SubPublicationCode adsml-bo:SubPublicationCode 0 (1)
PublicationType adsml-bo:PublicationType 0 (1)
Name adsml:Name 0 (1)
PublishedBy adsml-bo:PublishedBy 0 (1)
Contact adsml:Contact 0 unbounded
SpecialRequirements adsml:SpecialRequirements 0 unbounded
Properties adsml:Properties 0 (1)
Collapse Derivation Tree:
Collapse References:
adsml-fi:Publication, adsml-ma:Publication, adsml-ma:Publication, adsml-ma:Publication, adsml-pp:Publication
