Documentation for AdsML
Definition Type: Element
Name: Ratecard
Namespace: http://www.adsml.org/adsmlmediapack/1.0
Containing Schema: AdsMLMediapack-1.0-PublicTypeLibrary-AS.xsd
Abstract

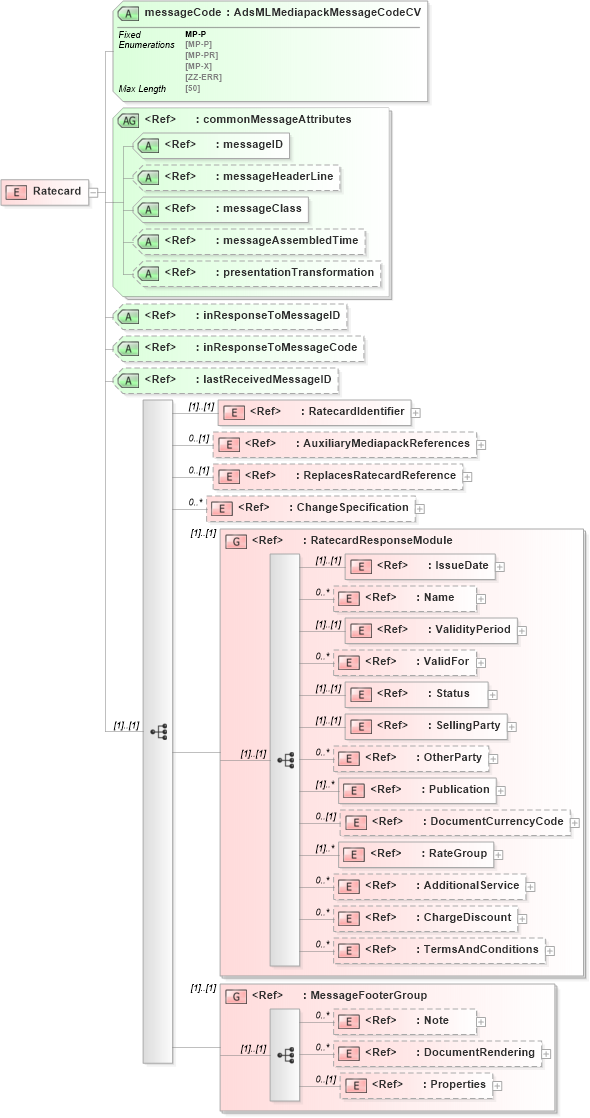

Collapse XSD Schema Diagram:
Drilldown into Properties in schema adsmltypelibrary-2_0-as_xsd Drilldown into DocumentRendering in schema adsmltypelibrary-2_0-as_xsd Drilldown into Note in schema adsmltypelibrary-2_0-as_xsd Drilldown into MessageFooterGroup in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into TermsAndConditions in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into ChargeDiscount in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into AdditionalService in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into RateGroup in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into DocumentCurrencyCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into Publication in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into OtherParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into SellingParty in schema adsmltypelibrary-2_0-as_xsd Drilldown into Status in schema adsmltypelibrary-2_0-as_xsd Drilldown into ValidFor in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into ValidityPeriod in schema adsmltypelibrary-2_0-as_xsd Drilldown into Name in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into IssueDate in schema adsmltypelibrary-2_0-as_xsd Drilldown into RatecardResponseModule in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into ChangeSpecification in schema adsmltypelibrary-2_0-as_xsd Drilldown into ReplacesRatecardReference in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into AuxiliaryMediapackReferences in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into RatecardIdentifier in schema adsmlmediapack-1_0-publictypelibrary-as_xsd Drilldown into lastReceivedMessageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into inResponseToMessageCode in schema adsmltypelibrary-2_0-as_xsd Drilldown into inResponseToMessageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into presentationTransformation in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageAssembledTime in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageClass in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageHeaderLine in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageID in schema adsmltypelibrary-2_0-as_xsd Drilldown into commonMessageAttributes in schema adsmltypelibrary-2_0-as_xsd Drilldown into messageCode in schema adsmlmediapack-1_0-publictypelibrary-as_xsdXSD Diagram of Ratecard in schema adsmlmediapack-1_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="Ratecard">
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="RatecardIdentifier" />
            <xs:element ref="AuxiliaryMediapackReferences" minOccurs="0" />
            <xs:element ref="ReplacesRatecardReference" minOccurs="0" />
            <xs:element ref="adsml:ChangeSpecification" minOccurs="0" maxOccurs="unbounded" />
            <xs:group ref="RatecardResponseModule" />
            <xs:group ref="MessageFooterGroup" />
        </xs:sequence>
        <xs:attribute name="messageCode" type="AdsMLMediapackMessageCodeCV" use="required" fixed="MP-P" />
        <xs:attributeGroup ref="adsml:commonMessageAttributes" />
        <xs:attribute ref="adsml:inResponseToMessageID" use="optional" />
        <xs:attribute ref="adsml:inResponseToMessageCode" use="optional" />
        <xs:attribute ref="adsml:lastReceivedMessageID" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RatecardIdentifier nsB:RatecardIdentifier (1) (1)
AuxiliaryMediapackReferences nsB:AuxiliaryMediapackReferences 0 (1)
ReplacesRatecardReference nsB:ReplacesRatecardReference 0 (1)
ChangeSpecification adsml:ChangeSpecification 0 unbounded
IssueDate adsml:IssueDate (1) (1)
Name nsB:Name 0 unbounded
ValidityPeriod adsml:ValidityPeriod (1) (1)
ValidFor nsB:ValidFor 0 unbounded
Status adsml:Status (1) (1)
SellingParty adsml:SellingParty (1) (1)
OtherParty adsml:OtherParty 0 unbounded
Publication nsB:Publication (1) unbounded
DocumentCurrencyCode adsml:DocumentCurrencyCode 0 (1)
RateGroup nsB:RateGroup (1) unbounded
AdditionalService nsB:AdditionalService 0 unbounded
ChargeDiscount nsB:ChargeDiscount 0 unbounded
TermsAndConditions nsB:TermsAndConditions 0 unbounded
Note adsml:Note 0 unbounded
DocumentRendering adsml:DocumentRendering 0 unbounded
Properties adsml:Properties 0 (1)
<xs:group> nsB:RatecardResponseModule (1) (1)
<xs:group> nsB:MessageFooterGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
messageCode nsB:messageCode Required
messageID adsml:messageID Required
messageHeaderLine adsml:messageHeaderLine (Optional)
messageClass adsml:messageClass Required
messageAssembledTime adsml:messageAssembledTime Optional
presentationTransformation adsml:presentationTransformation Optional
inResponseToMessageID adsml:inResponseToMessageID Optional
inResponseToMessageCode adsml:inResponseToMessageCode Optional
lastReceivedMessageID adsml:lastReceivedMessageID Optional
