Documentation for AdsML
Definition Type: Element
Name: ValueTable
Namespace: http://www.adsml.org/adsmlstructureddescriptions/1.0
Type: adsml-sd:ValueTableType
Containing Schema: AdsMLStructuredDescriptions-1.0-PublicTypeLibrary-AS.xsd
Abstract

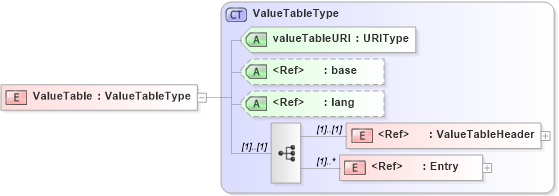

Collapse XSD Schema Diagram:
Drilldown into Entry in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into ValueTableHeader in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into lang in schema xml_xsd Drilldown into base in schema xml_xsd Drilldown into valueTableURI in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd Drilldown into ValueTableType in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsdXSD Diagram of ValueTable in schema adsmlstructureddescriptions-1_0-publictypelibrary-as_xsd (AdsML)
Collapse XSD Schema Code:
<xs:element name="ValueTable" type="ValueTableType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ValueTableHeader adsml-sd:ValueTableHeader (1) (1)
Entry adsml-sd:Entry (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
valueTableURI adsml-sd:valueTableURI Required
base xml:base Optional
lang xml:lang Optional
Collapse Derivation Tree:
