Definition Type: ComplexType
Name: TransportationInformationType
Namespace: urn:www.agxml.org:schemas:all:2:0
Containing Schema: AgXML_v2.0_Message_Contract.xsd
Abstract

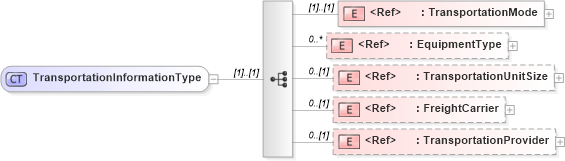

Collapse XSD Schema Diagram:
Drilldown into TransportationProvider in schema agxml_v2_0_message_contract_xsd Drilldown into FreightCarrier in schema agxml_v2_0_shared_xsd Drilldown into TransportationUnitSize in schema agxml_v2_0_message_contract_xsd Drilldown into EquipmentType in schema agxml_v2_0_shared_xsd Drilldown into TransportationMode in schema agxml_v2_0_shared_xsdXSD Diagram of TransportationInformationType in schema agxml_v2_0_message_contract_xsd (AgXML - Agriculture Information)
Collapse XSD Schema Code:
<xsd:complexType name="TransportationInformationType">
    <xsd:sequence>
        <xsd:element ref="TransportationMode" />
        <xsd:element ref="EquipmentType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TransportationUnitSize" minOccurs="0" />
        <xsd:element ref="FreightCarrier" minOccurs="0" />
        <xsd:element ref="TransportationProvider" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportationMode nsA:TransportationMode (1) (1)
EquipmentType nsA:EquipmentType 0 unbounded
TransportationUnitSize nsA:TransportationUnitSize 0 (1)
FreightCarrier nsA:FreightCarrier 0 (1)
TransportationProvider nsA:TransportationProvider 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:TransportationInformation
