Documentation for Chemical Markup Language (CML)
Definition Type: AttributeGroup
Name: box3
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Collapse XSD Schema Diagram:

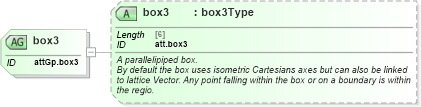

Drilldown into box3 in schema schema_xsdXSD Diagram of box3 in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:attributeGroup id="attGp.box3" name="box3">
    <xsd:attribute name="box3" type="box3Type" id="att.box3">
        <xsd:annotation>
            <xsd:documentation>
                <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A parallelipiped box.</h:div>
                <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">By default the box uses isometric Cartesians axes but can also be linked to lattice Vector. Any point falling within the box or on a boundary is within the regio.</h:div>
            </xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
box3 nsA:box3 (Optional)
