Documentation for Chemical Markup Language (CML)
Definition Type: SimpleType
Name: box3Type
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Documentation:
A box in 3-space. Defined by 6 real numbers (x1 y1 z1 x2 y2 z2). By default these are Cartesian coordinates (with units specified elsewhere - responsibility of schema creator.) If there is a means of specifying oblique axes (e.g. crystallographic cell) the box may be a parallelipiped. The components are grouped in threes ans separated by a semicolon to avoid problems of guessing the convention.
Collapse XSD Schema Diagram:

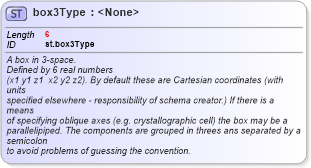

XSD Diagram of box3Type in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:simpleType name="box3Type" id="st.box3Type">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A box in 3-space.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">Defined by 6 real numbers
            (x1 y1 z1  x2 y2 z2). By default these are Cartesian coordinates (with units
            specified elsewhere - responsibility of schema creator.) If there is a means
            of specifying oblique axes (e.g. crystallographic cell) the box may be a
            parallelipiped. The components are grouped in threes ans separated by a semicolon
            to avoid problems of guessing the convention.</h:div>
            <h:div class="example" href="box31.xml" xmlns:h="http://www.w3.org/1999/xhtml" />
        </xsd:documentation>
    </xsd:annotation>
    <xsd:restriction>
        <xsd:simpleType>
            <xsd:list itemType="xsd:double" />
        </xsd:simpleType>
        <xsd:length value="6" />
    </xsd:restriction>
</xsd:simpleType>
Collapse Facets:
Facet Value
Length 6
Collapse Derivation Tree:
Collapse References:
nsA:box3
