Definition Type: AttributeGroup
Name: electronMap
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Collapse XSD Schema Diagram:

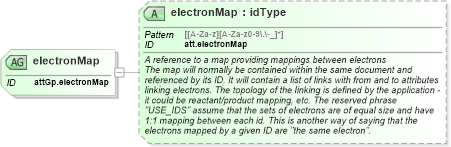

Drilldown into electronMap in schema schema_xsdXSD Diagram of electronMap in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:attributeGroup id="attGp.electronMap" name="electronMap">
    <xsd:attribute id="att.electronMap" name="electronMap" type="idType">
        <xsd:annotation>
            <xsd:documentation>
                <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">A reference to a map providing mappings between electrons</h:div>
                <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">The map will normally be contained within the same document and referenced by its ID. It will contain a list of links with from and to attributes linking electrons. The topology of the linking is defined by the application - it could be reactant/product mapping, etc. The reserved phrase "USE_IDS" assume that the sets of electrons are of equal size and have 1:1 mapping between each id. This is another way of saying that the electrons mapped by a given ID are "the same electron". </h:div>
            </xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
electronMap nsA:electronMap (Optional)
