Definition Type: SimpleType
Name: plane3Type
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Documentation:
An unbounded plane in 3-space. Defined by 4 real numbers, conventionally a vector3 normal to the plane and a signed scalar representing the distance to the origin. The vector must not be of zero length (and need not be normalized. The first three numbers are the vector, followed by the distance
Collapse XSD Schema Diagram:

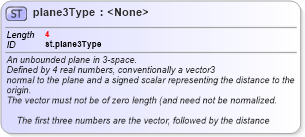

XSD Diagram of plane3Type in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:simpleType name="plane3Type" id="st.plane3Type">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">An unbounded plane in 3-space.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">Defined by 4 real numbers, conventionally a vector3
            normal to the plane and a signed scalar representing the distance to the origin.
            The vector must not be of zero length (and need not be normalized.</h:div>
            <h:div class="example" href="plane31.xml" xmlns:h="http://www.w3.org/1999/xhtml">
                <h:p>The first three numbers are the vector, followed by the distance</h:p>
            </h:div>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:restriction>
        <xsd:simpleType>
            <xsd:list itemType="xsd:double" />
        </xsd:simpleType>
        <xsd:length value="4" />
    </xsd:restriction>
</xsd:simpleType>
Collapse Facets:
Facet Value
Length 4
Collapse Derivation Tree:
Collapse References:
nsA:plane3
