Documentation for Chemical Markup Language (CML)
Definition Type: SimpleType
Name: schemeType
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Documentation:
The sequence of steps in a reactionList. By default the reactions in a reactionStepList are assumed to take place in sequence (e.g. one or more products of reaction n are used in reaction n+1 or later. However there are cases where it is known that reactions take place in parallel (e.g. if there is no overlap of molecular identities). Alternatively there are points at which there are two or more competing reactions which may depend on conditions or concentrations. A small semi-controlled vocabulary is suggested.
Collapse XSD Schema Diagram:

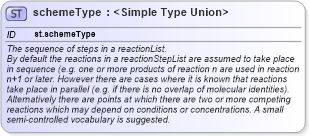

XSD Diagram of schemeType in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:simpleType id="st.schemeType" name="schemeType">
    <xsd:annotation>
        <xsd:documentation>
            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">The sequence of steps in a reactionList.</h:div>
            <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">By default the reactions in a reactionStepList are assumed to take place in sequence (e.g. one or more products of reaction n are used in reaction n+1 or later. However there are cases where it is known that reactions take place in parallel (e.g. if there is no overlap of molecular identities). Alternatively there are points at which there are two or more competing reactions which may depend on conditions or concentrations. A small semi-controlled vocabulary is suggested.</h:div>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:union>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="unknown">
                    <xsd:annotation>
                        <xsd:documentation>
                            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">The order of the steps is unknow.</h:div>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:enumeration>
                <xsd:enumeration value="sequence">
                    <xsd:annotation>
                        <xsd:documentation>
                            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">The reaction proceeds through the steps in the order give.</h:div>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:enumeration>
                <xsd:enumeration value="choice">
                    <xsd:annotation>
                        <xsd:documentation>
                            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">The reaction may proceed through either of the contained reactions or reactionScheme.</h:div>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:enumeration>
                <xsd:enumeration value="and">
                    <xsd:annotation>
                        <xsd:documentation>
                            <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">The two or more independent reaction/List children proceed independently. This can be extended to synthetic chemistry where two parts of the synthesis are conducted in parallel.</h:div>
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:enumeration>
            </xsd:restriction>
        </xsd:simpleType>
        <xsd:simpleType>
            <xsd:restriction base="namespaceRefType" />
        </xsd:simpleType>
    </xsd:union>
</xsd:simpleType>
Collapse Derivation Tree:
Collapse References:
nsA:scheme
