Documentation for Chemical Markup Language (CML)
Definition Type: AttributeGroup
Name: y2
Namespace: http://www.xml-cml.org/schema
Containing Schema: schema.xsd
Collapse XSD Schema Diagram:

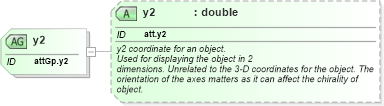

Drilldown into y2 in schema schema_xsdXSD Diagram of y2 in schema schema_xsd (Chemical Markup Language (CML))
Collapse XSD Schema Code:
<xsd:attributeGroup id="attGp.y2" name="y2">
    <xsd:attribute id="att.y2" name="y2" type="xsd:double">
        <xsd:annotation>
            <xsd:documentation>
                <h:div class="summary" xmlns:h="http://www.w3.org/1999/xhtml">y2 coordinate for an object.</h:div>
                <h:div class="description" xmlns:h="http://www.w3.org/1999/xhtml">Used for displaying the object in 2
                dimensions. Unrelated to the 3-D coordinates for the object. The
                orientation of the axes matters as it can affect the chirality of
                object.</h:div>
            </xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
y2 nsA:y2 (Optional)
