Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: DiscountsType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_CommonComponents.xsd
Abstract

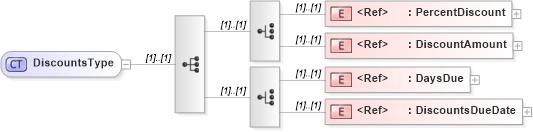

Collapse XSD Schema Diagram:
Drilldown into DiscountsDueDate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DaysDue in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DiscountAmount in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PercentDiscount in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of DiscountsType in schema cidx_ces_v4_0_commoncomponents_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="DiscountsType">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="PercentDiscount" />
            <xsd:element ref="DiscountAmount" />
        </xsd:choice>
        <xsd:choice>
            <xsd:element ref="DaysDue" />
            <xsd:element ref="DiscountsDueDate" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PercentDiscount nsA:PercentDiscount (1) (1)
DiscountAmount nsA:DiscountAmount (1) (1)
DaysDue nsA:DaysDue (1) (1)
DiscountsDueDate nsA:DiscountsDueDate (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:Discounts
