Documentation for CIDX eChemical Standard
Definition Type: Element
Name: EquipmentDetails
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:EquipmentDetailsType
Containing Schema: CIDX_CeS_v4.0_CommonComponents.xsd
Abstract
Documentation:
Group describing transportation carrier equipment details

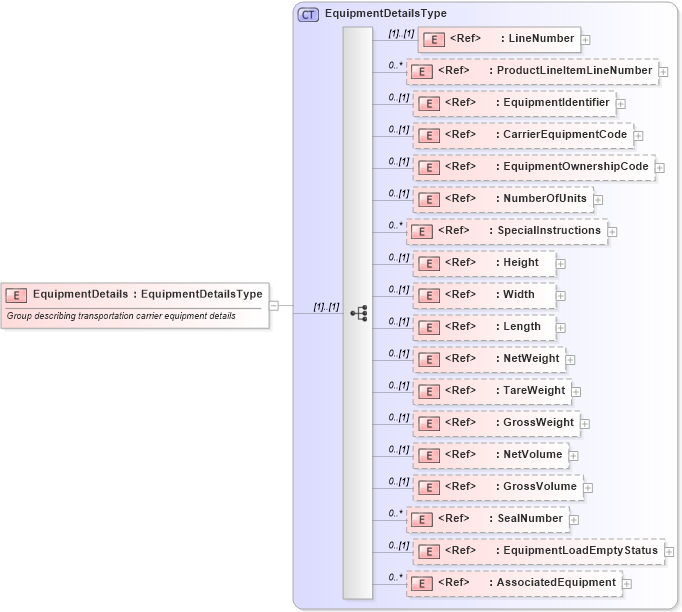

Collapse XSD Schema Diagram:
Drilldown into AssociatedEquipment in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EquipmentLoadEmptyStatus in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SealNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into GrossVolume in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NetVolume in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into GrossWeight in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TareWeight in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NetWeight in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Length in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Width in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Height in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NumberOfUnits in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EquipmentOwnershipCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CarrierEquipmentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EquipmentIdentifier in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductLineItemLineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EquipmentDetailsType in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of EquipmentDetails in schema cidx_ces_v4_0_commoncomponents_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="EquipmentDetails" type="EquipmentDetailsType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Group describing transportation carrier equipment details</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
ProductLineItemLineNumber nsA:ProductLineItemLineNumber 0 unbounded
EquipmentIdentifier nsA:EquipmentIdentifier 0 (1)
CarrierEquipmentCode nsA:CarrierEquipmentCode 0 (1)
EquipmentOwnershipCode nsA:EquipmentOwnershipCode 0 (1)
NumberOfUnits nsA:NumberOfUnits 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
Height nsA:Height 0 (1)
Width nsA:Width 0 (1)
Length nsA:Length 0 (1)
NetWeight nsA:NetWeight 0 (1)
TareWeight nsA:TareWeight 0 (1)
GrossWeight nsA:GrossWeight 0 (1)
NetVolume nsA:NetVolume 0 (1)
GrossVolume nsA:GrossVolume 0 (1)
SealNumber nsA:SealNumber 0 unbounded
EquipmentLoadEmptyStatus nsA:EquipmentLoadEmptyStatus 0 (1)
AssociatedEquipment nsA:AssociatedEquipment 0 unbounded
Collapse Derivation Tree:
