Documentation for CIDX eChemical Standard
Definition Type: Element
Name: FreightBillProperties
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:FreightBillPropertiesType
Containing Schema: CIDX_CeS_v4.0_Message_FreightBill.xsd
Abstract
Documentation:
The properties structure of the freight bill message.

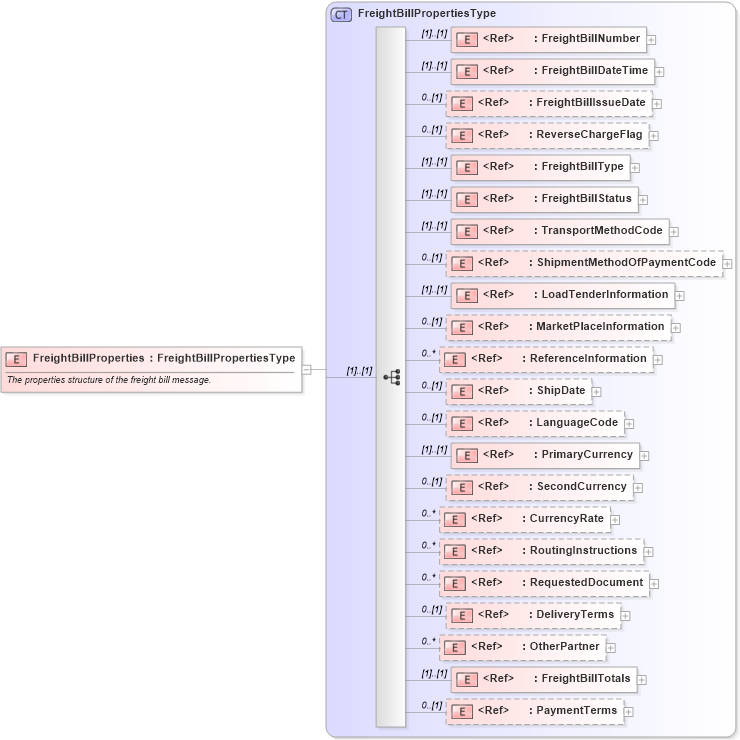

Collapse XSD Schema Diagram:
Drilldown into PaymentTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into FreightBillTotals in schema cidx_ces_v4_0_message_freightbill_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequestedDocument in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RoutingInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CurrencyRate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SecondCurrency in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PrimaryCurrency in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LanguageCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipDate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MarketPlaceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LoadTenderInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportMethodCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into FreightBillStatus in schema cidx_ces_v4_0_message_freightbill_xsd Drilldown into FreightBillType in schema cidx_ces_v4_0_message_freightbill_xsd Drilldown into ReverseChargeFlag in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into FreightBillIssueDate in schema cidx_ces_v4_0_message_freightbill_xsd Drilldown into FreightBillDateTime in schema cidx_ces_v4_0_message_freightbill_xsd Drilldown into FreightBillNumber in schema cidx_ces_v4_0_message_freightbill_xsd Drilldown into FreightBillPropertiesType in schema cidx_ces_v4_0_message_freightbill_xsdXSD Diagram of FreightBillProperties in schema cidx_ces_v4_0_message_freightbill_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="FreightBillProperties" type="FreightBillPropertiesType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>The properties structure of the freight bill message.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FreightBillNumber nsA:FreightBillNumber (1) (1)
FreightBillDateTime nsA:FreightBillDateTime (1) (1)
FreightBillIssueDate nsA:FreightBillIssueDate 0 (1)
ReverseChargeFlag nsA:ReverseChargeFlag 0 (1)
FreightBillType nsA:FreightBillType (1) (1)
FreightBillStatus nsA:FreightBillStatus (1) (1)
TransportMethodCode nsA:TransportMethodCode (1) (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
LoadTenderInformation nsA:LoadTenderInformation (1) (1)
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ShipDate nsA:ShipDate 0 (1)
LanguageCode nsA:LanguageCode 0 (1)
PrimaryCurrency nsA:PrimaryCurrency (1) (1)
SecondCurrency nsA:SecondCurrency 0 (1)
CurrencyRate nsA:CurrencyRate 0 unbounded
RoutingInstructions nsA:RoutingInstructions 0 unbounded
RequestedDocument nsA:RequestedDocument 0 unbounded
DeliveryTerms nsA:DeliveryTerms 0 (1)
OtherPartner nsA:OtherPartner 0 unbounded
FreightBillTotals nsA:FreightBillTotals (1) (1)
PaymentTerms nsA:PaymentTerms 0 (1)
Collapse Derivation Tree:
