Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: HazardousCanadianType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_CommonComponents.xsd
Abstract

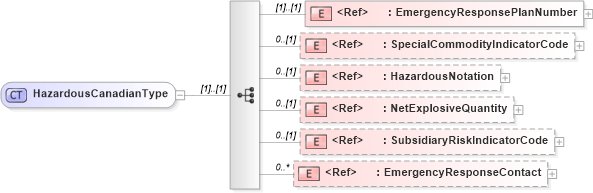

Collapse XSD Schema Diagram:
Drilldown into EmergencyResponseContact in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SubsidiaryRiskIndicatorCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NetExplosiveQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into HazardousNotation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialCommodityIndicatorCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EmergencyResponsePlanNumber in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of HazardousCanadianType in schema cidx_ces_v4_0_commoncomponents_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="HazardousCanadianType">
    <xsd:sequence>
        <xsd:element ref="EmergencyResponsePlanNumber" />
        <xsd:element ref="SpecialCommodityIndicatorCode" minOccurs="0" />
        <xsd:element ref="HazardousNotation" minOccurs="0" />
        <xsd:element ref="NetExplosiveQuantity" minOccurs="0" />
        <xsd:element ref="SubsidiaryRiskIndicatorCode" minOccurs="0" />
        <xsd:element ref="EmergencyResponseContact" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmergencyResponsePlanNumber nsA:EmergencyResponsePlanNumber (1) (1)
SpecialCommodityIndicatorCode nsA:SpecialCommodityIndicatorCode 0 (1)
HazardousNotation nsA:HazardousNotation 0 (1)
NetExplosiveQuantity nsA:NetExplosiveQuantity 0 (1)
SubsidiaryRiskIndicatorCode nsA:SubsidiaryRiskIndicatorCode 0 (1)
EmergencyResponseContact nsA:EmergencyResponseContact 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:HazardousCanadian
