Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: HazardousIdentificationType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_CommonComponents.xsd
Abstract

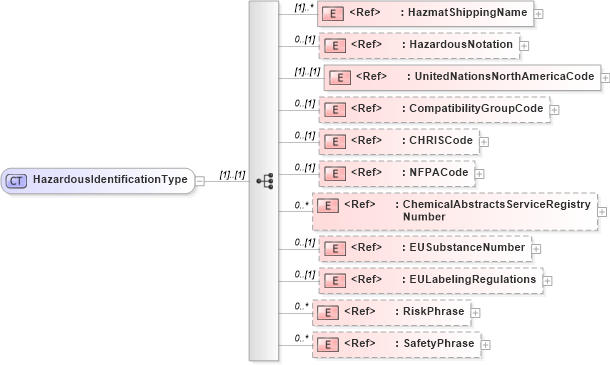

Collapse XSD Schema Diagram:
Drilldown into SafetyPhrase in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RiskPhrase in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EULabelingRegulations in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EUSubstanceNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ChemicalAbstractsServiceRegistryNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NFPACode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CHRISCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CompatibilityGroupCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into UnitedNationsNorthAmericaCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into HazardousNotation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into HazmatShippingName in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of HazardousIdentificationType in schema cidx_ces_v4_0_commoncomponents_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="HazardousIdentificationType">
    <xsd:sequence>
        <xsd:element ref="HazmatShippingName" maxOccurs="unbounded" />
        <xsd:element ref="HazardousNotation" minOccurs="0" />
        <xsd:element ref="UnitedNationsNorthAmericaCode" />
        <xsd:element ref="CompatibilityGroupCode" minOccurs="0" />
        <xsd:element ref="CHRISCode" minOccurs="0" />
        <xsd:element ref="NFPACode" minOccurs="0" />
        <xsd:element ref="ChemicalAbstractsServiceRegistryNumber" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EUSubstanceNumber" minOccurs="0" />
        <xsd:element ref="EULabelingRegulations" minOccurs="0" />
        <xsd:element ref="RiskPhrase" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SafetyPhrase" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HazmatShippingName nsA:HazmatShippingName (1) unbounded
HazardousNotation nsA:HazardousNotation 0 (1)
UnitedNationsNorthAmericaCode nsA:UnitedNationsNorthAmericaCode (1) (1)
CompatibilityGroupCode nsA:CompatibilityGroupCode 0 (1)
CHRISCode nsA:CHRISCode 0 (1)
NFPACode nsA:NFPACode 0 (1)
ChemicalAbstractsServiceRegistryNumber nsA:ChemicalAbstractsServiceRegistryNumber 0 unbounded
EUSubstanceNumber nsA:EUSubstanceNumber 0 (1)
EULabelingRegulations nsA:EULabelingRegulations 0 (1)
RiskPhrase nsA:RiskPhrase 0 unbounded
SafetyPhrase nsA:SafetyPhrase 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:HazardousIdentification
