Documentation for CIDX eChemical Standard
Definition Type: Element
Name: InvoiceProperties
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:InvoicePropertiesType
Containing Schema: CIDX_CeS_v4.0_Message_Invoice.xsd
Abstract
Documentation:
Mid level element containing invoice properties details for the invoice message.

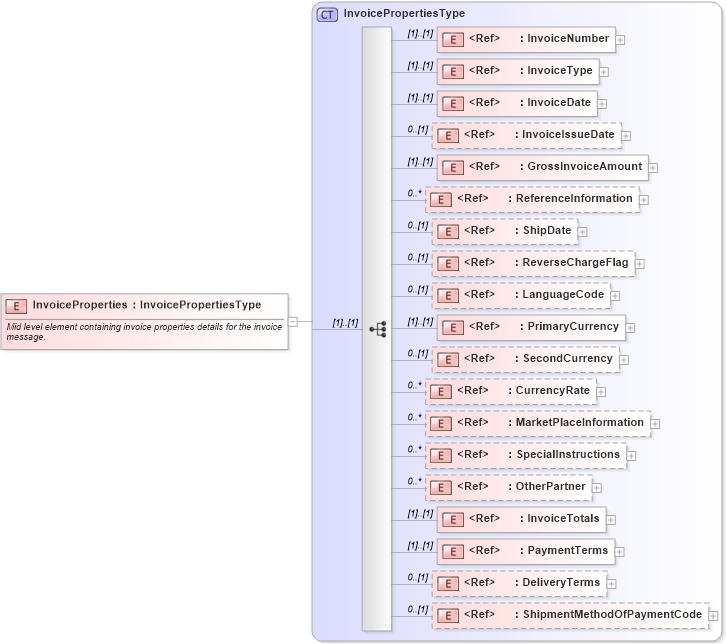

Collapse XSD Schema Diagram:
Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PaymentTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InvoiceTotals in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MarketPlaceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CurrencyRate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SecondCurrency in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PrimaryCurrency in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LanguageCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReverseChargeFlag in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipDate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into GrossInvoiceAmount in schema cidx_ces_v4_0_message_invoice_xsd Drilldown into InvoiceIssueDate in schema cidx_ces_v4_0_message_invoice_xsd Drilldown into InvoiceDate in schema cidx_ces_v4_0_message_invoice_xsd Drilldown into InvoiceType in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InvoiceNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InvoicePropertiesType in schema cidx_ces_v4_0_message_invoice_xsdXSD Diagram of InvoiceProperties in schema cidx_ces_v4_0_message_invoice_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="InvoiceProperties" type="InvoicePropertiesType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>Mid level element containing invoice properties details for the invoice message.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InvoiceNumber nsA:InvoiceNumber (1) (1)
InvoiceType nsA:InvoiceType (1) (1)
InvoiceDate nsA:InvoiceDate (1) (1)
InvoiceIssueDate nsA:InvoiceIssueDate 0 (1)
GrossInvoiceAmount nsA:GrossInvoiceAmount (1) (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ShipDate nsA:ShipDate 0 (1)
ReverseChargeFlag nsA:ReverseChargeFlag 0 (1)
LanguageCode nsA:LanguageCode 0 (1)
PrimaryCurrency nsA:PrimaryCurrency (1) (1)
SecondCurrency nsA:SecondCurrency 0 (1)
CurrencyRate nsA:CurrencyRate 0 unbounded
MarketPlaceInformation nsA:MarketPlaceInformation 0 unbounded
SpecialInstructions nsA:SpecialInstructions 0 unbounded
OtherPartner nsA:OtherPartner 0 unbounded
InvoiceTotals nsA:InvoiceTotals (1) (1)
PaymentTerms nsA:PaymentTerms (1) (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
Collapse Derivation Tree:
