Documentation for CIDX eChemical Standard
Definition Type: Element
Name: LoadTenderOceanProductLineItem
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:LoadTenderOceanProductLineItemType
Containing Schema: CIDX_CeS_v4.0_Message_LoadTenderOcean.xsd
Abstract
Documentation:
The line items associated with the LoadTenderOcean message

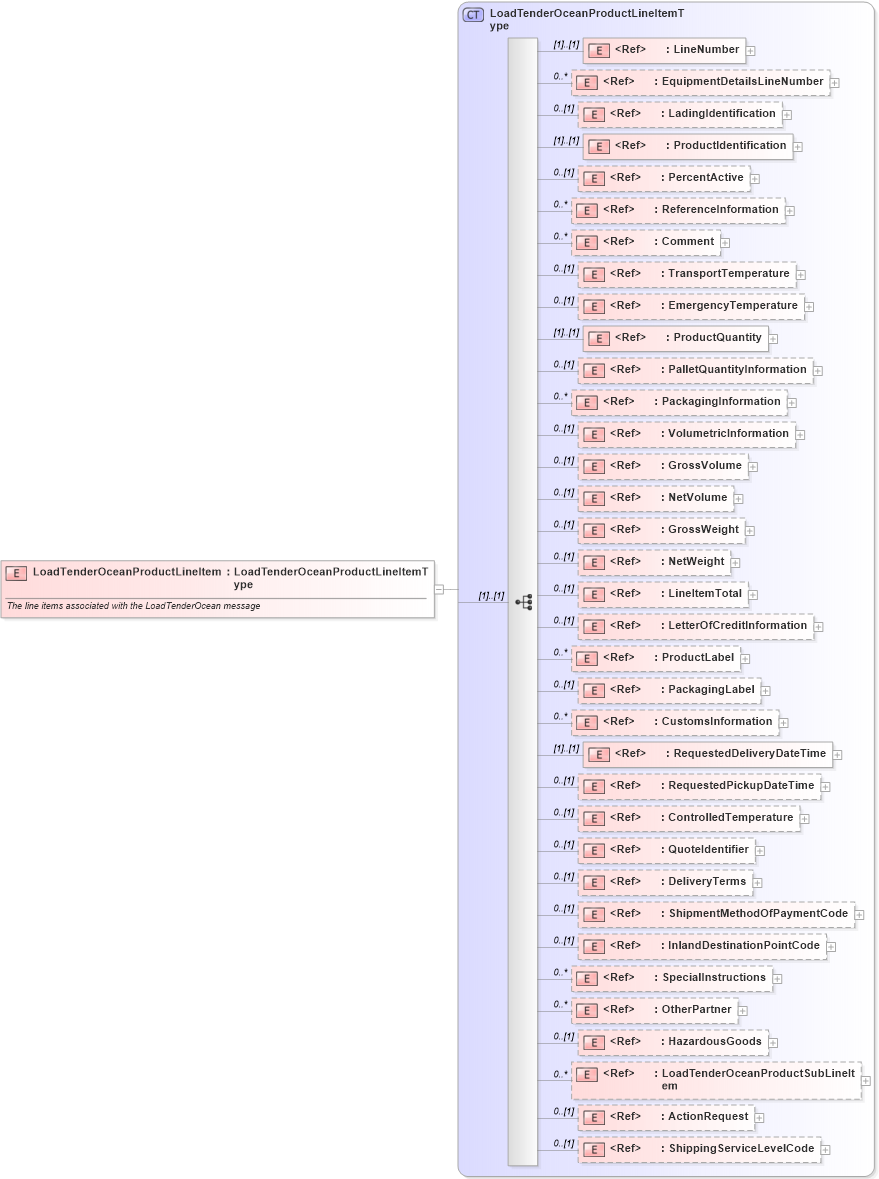

Collapse XSD Schema Diagram:
Drilldown into ShippingServiceLevelCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ActionRequest in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LoadTenderOceanProductSubLineItem in schema cidx_ces_v4_0_message_loadtenderocean_xsd Drilldown into HazardousGoods in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into InlandDestinationPointCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into QuoteIdentifier in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ControlledTemperature in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequestedPickupDateTime in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequestedDeliveryDateTime in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CustomsInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PackagingLabel in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductLabel in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LetterOfCreditInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineItemTotal in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NetWeight in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into GrossWeight in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into NetVolume in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into GrossVolume in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into VolumetricInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PackagingInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PalletQuantityInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductQuantity in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EmergencyTemperature in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportTemperature in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Comment in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PercentActive in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ProductIdentification in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LadingIdentification in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into EquipmentDetailsLineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LineNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LoadTenderOceanProductLineItemType in schema cidx_ces_v4_0_message_loadtenderocean_xsdXSD Diagram of LoadTenderOceanProductLineItem in schema cidx_ces_v4_0_message_loadtenderocean_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="LoadTenderOceanProductLineItem" type="LoadTenderOceanProductLineItemType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>The line items associated with the LoadTenderOcean message</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber (1) (1)
EquipmentDetailsLineNumber nsA:EquipmentDetailsLineNumber 0 unbounded
LadingIdentification nsA:LadingIdentification 0 (1)
ProductIdentification nsA:ProductIdentification (1) (1)
PercentActive nsA:PercentActive 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
Comment nsA:Comment 0 unbounded
TransportTemperature nsA:TransportTemperature 0 (1)
EmergencyTemperature nsA:EmergencyTemperature 0 (1)
ProductQuantity nsA:ProductQuantity (1) (1)
PalletQuantityInformation nsA:PalletQuantityInformation 0 (1)
PackagingInformation nsA:PackagingInformation 0 unbounded
VolumetricInformation nsA:VolumetricInformation 0 (1)
GrossVolume nsA:GrossVolume 0 (1)
NetVolume nsA:NetVolume 0 (1)
GrossWeight nsA:GrossWeight 0 (1)
NetWeight nsA:NetWeight 0 (1)
LineItemTotal nsA:LineItemTotal 0 (1)
LetterOfCreditInformation nsA:LetterOfCreditInformation 0 (1)
ProductLabel nsA:ProductLabel 0 unbounded
PackagingLabel nsA:PackagingLabel 0 (1)
CustomsInformation nsA:CustomsInformation 0 unbounded
RequestedDeliveryDateTime nsA:RequestedDeliveryDateTime (1) (1)
RequestedPickupDateTime nsA:RequestedPickupDateTime 0 (1)
ControlledTemperature nsA:ControlledTemperature 0 (1)
QuoteIdentifier nsA:QuoteIdentifier 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
InlandDestinationPointCode nsA:InlandDestinationPointCode 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
OtherPartner nsA:OtherPartner 0 unbounded
HazardousGoods nsA:HazardousGoods 0 (1)
LoadTenderOceanProductSubLineItem nsA:LoadTenderOceanProductSubLineItem 0 unbounded
ActionRequest nsA:ActionRequest 0 (1)
ShippingServiceLevelCode nsA:ShippingServiceLevelCode 0 (1)
Collapse Derivation Tree:
