Documentation for CIDX eChemical Standard
Definition Type: Element
Name: LoadTenderResponseProperties
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:LoadTenderResponsePropertiesType
Containing Schema: CIDX_CeS_v4.0_Message_LoadTenderResponse.xsd
Abstract
Documentation:
The properties associated with the LoadTenderResponse message.

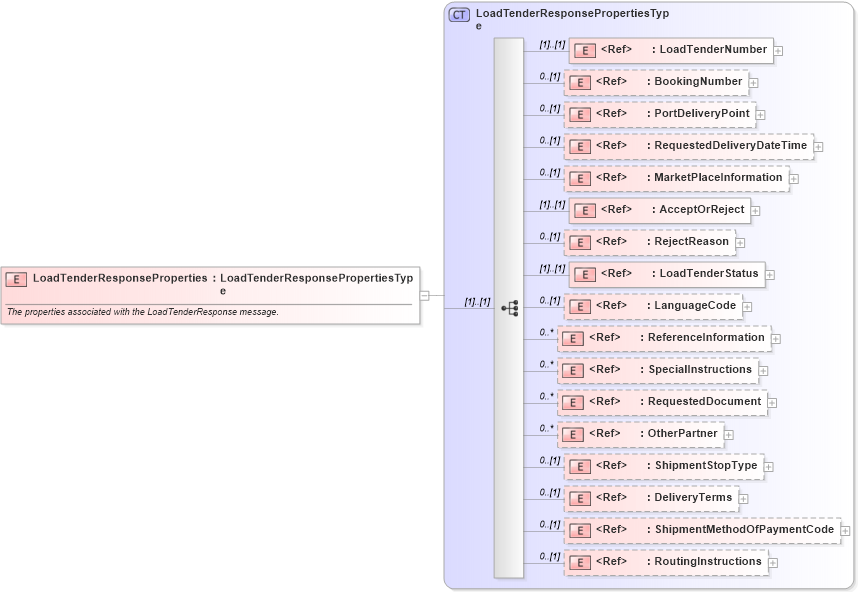

Collapse XSD Schema Diagram:
Drilldown into RoutingInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentStopType in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequestedDocument in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LanguageCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LoadTenderStatus in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RejectReason in schema cidx_ces_v4_0_message_loadtenderresponse_xsd Drilldown into AcceptOrReject in schema cidx_ces_v4_0_message_loadtenderresponse_xsd Drilldown into MarketPlaceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequestedDeliveryDateTime in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PortDeliveryPoint in schema cidx_ces_v4_0_message_loadtenderresponse_xsd Drilldown into BookingNumber in schema cidx_ces_v4_0_message_loadtenderresponse_xsd Drilldown into LoadTenderNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LoadTenderResponsePropertiesType in schema cidx_ces_v4_0_message_loadtenderresponse_xsdXSD Diagram of LoadTenderResponseProperties in schema cidx_ces_v4_0_message_loadtenderresponse_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="LoadTenderResponseProperties" type="LoadTenderResponsePropertiesType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>The properties associated with the LoadTenderResponse message.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoadTenderNumber nsA:LoadTenderNumber (1) (1)
BookingNumber nsA:BookingNumber 0 (1)
PortDeliveryPoint nsA:PortDeliveryPoint 0 (1)
RequestedDeliveryDateTime nsA:RequestedDeliveryDateTime 0 (1)
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
AcceptOrReject nsA:AcceptOrReject (1) (1)
RejectReason nsA:RejectReason 0 (1)
LoadTenderStatus nsA:LoadTenderStatus (1) (1)
LanguageCode nsA:LanguageCode 0 (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
SpecialInstructions nsA:SpecialInstructions 0 unbounded
RequestedDocument nsA:RequestedDocument 0 unbounded
OtherPartner nsA:OtherPartner 0 unbounded
ShipmentStopType nsA:ShipmentStopType 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
RoutingInstructions nsA:RoutingInstructions 0 (1)
Collapse Derivation Tree:
