Documentation for CIDX eChemical Standard
Definition Type: Element
Name: OrderResponseProperties
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Type: nsA:OrderResponsePropertiesType
Containing Schema: CIDX_CeS_v4.0_Message_OrderResponse.xsd
Abstract
Documentation:
eStandards Properties structure. It contains the message 'metadata' or 'common data'.

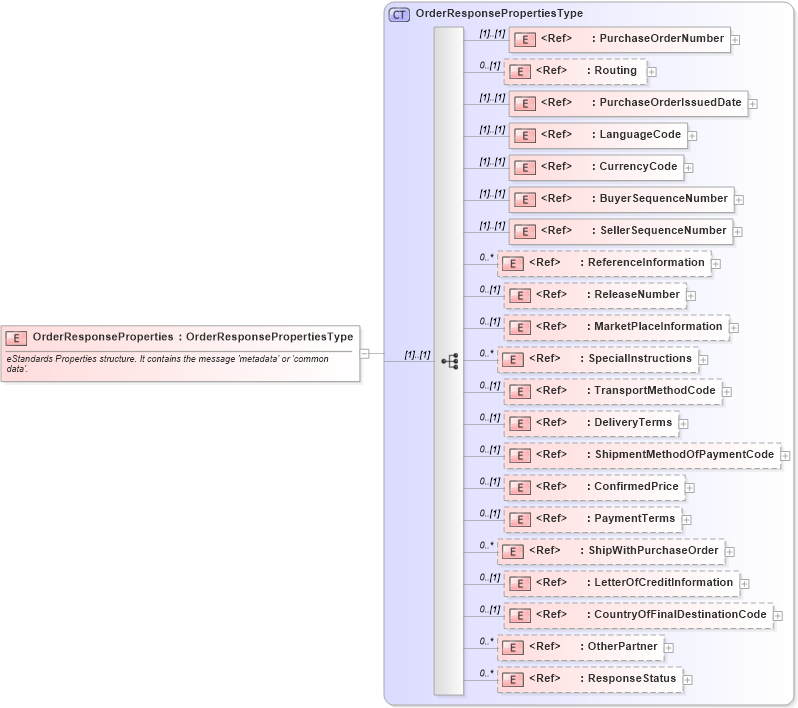

Collapse XSD Schema Diagram:
Drilldown into ResponseStatus in schema cidx_ces_v4_0_message_orderresponse_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CountryOfFinalDestinationCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LetterOfCreditInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipWithPurchaseOrder in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PaymentTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ConfirmedPrice in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into TransportMethodCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MarketPlaceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReleaseNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SellerSequenceNumber in schema cidx_ces_v4_0_message_orderresponse_xsd Drilldown into BuyerSequenceNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CurrencyCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LanguageCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PurchaseOrderIssuedDate in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Routing in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into PurchaseOrderNumber in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into OrderResponsePropertiesType in schema cidx_ces_v4_0_message_orderresponse_xsdXSD Diagram of OrderResponseProperties in schema cidx_ces_v4_0_message_orderresponse_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:element name="OrderResponseProperties" type="OrderResponsePropertiesType">
    <xsd:annotation>
        <xsd:documentation>
            <Documentation>
                <Description>eStandards Properties structure. It contains the message 'metadata' or 'common data'.</Description>
            </Documentation>
        </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PurchaseOrderNumber nsA:PurchaseOrderNumber (1) (1)
Routing nsA:Routing 0 (1)
PurchaseOrderIssuedDate nsA:PurchaseOrderIssuedDate (1) (1)
LanguageCode nsA:LanguageCode (1) (1)
CurrencyCode nsA:CurrencyCode (1) (1)
BuyerSequenceNumber nsA:BuyerSequenceNumber (1) (1)
SellerSequenceNumber nsA:SellerSequenceNumber (1) (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
ReleaseNumber nsA:ReleaseNumber 0 (1)
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
TransportMethodCode nsA:TransportMethodCode 0 (1)
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
ConfirmedPrice nsA:ConfirmedPrice 0 (1)
PaymentTerms nsA:PaymentTerms 0 (1)
ShipWithPurchaseOrder nsA:ShipWithPurchaseOrder 0 unbounded
LetterOfCreditInformation nsA:LetterOfCreditInformation 0 (1)
CountryOfFinalDestinationCode nsA:CountryOfFinalDestinationCode 0 (1)
OtherPartner nsA:OtherPartner 0 unbounded
ResponseStatus nsA:ResponseStatus 0 unbounded
Collapse Derivation Tree:
