Documentation for CIDX eChemical Standard
Definition Type: ComplexType
Name: PriceAndAvailabilityRequestPropertiesType
Namespace: urn:cidx:names:specification:ces:schema:all:4:0
Containing Schema: CIDX_CeS_v4.0_Message_PriceAndAvailabilityRequest.xsd
Abstract

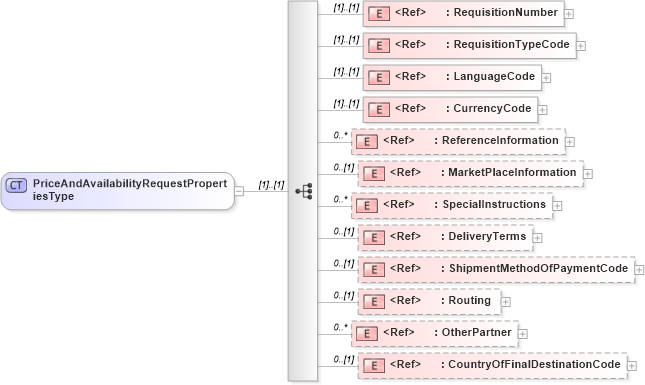

Collapse XSD Schema Diagram:
Drilldown into CountryOfFinalDestinationCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into OtherPartner in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into Routing in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ShipmentMethodOfPaymentCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into DeliveryTerms in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into SpecialInstructions in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into MarketPlaceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into ReferenceInformation in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into CurrencyCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into LanguageCode in schema cidx_ces_v4_0_commoncomponents_xsd Drilldown into RequisitionTypeCode in schema cidx_ces_v4_0_message_priceandavailabilityrequest_xsd Drilldown into RequisitionNumber in schema cidx_ces_v4_0_commoncomponents_xsdXSD Diagram of PriceAndAvailabilityRequestPropertiesType in schema cidx_ces_v4_0_message_priceandavailabilityrequest_xsd (CIDX eChemical Standard)
Collapse XSD Schema Code:
<xsd:complexType name="PriceAndAvailabilityRequestPropertiesType">
    <xsd:sequence>
        <xsd:element ref="RequisitionNumber" />
        <xsd:element ref="RequisitionTypeCode" />
        <xsd:element ref="LanguageCode" />
        <xsd:element ref="CurrencyCode" />
        <xsd:element ref="ReferenceInformation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MarketPlaceInformation" minOccurs="0" />
        <xsd:element ref="SpecialInstructions" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DeliveryTerms" minOccurs="0" />
        <xsd:element ref="ShipmentMethodOfPaymentCode" minOccurs="0" />
        <xsd:element ref="Routing" minOccurs="0" />
        <xsd:element ref="OtherPartner" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CountryOfFinalDestinationCode" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RequisitionNumber nsA:RequisitionNumber (1) (1)
RequisitionTypeCode nsA:RequisitionTypeCode (1) (1)
LanguageCode nsA:LanguageCode (1) (1)
CurrencyCode nsA:CurrencyCode (1) (1)
ReferenceInformation nsA:ReferenceInformation 0 unbounded
MarketPlaceInformation nsA:MarketPlaceInformation 0 (1)
SpecialInstructions nsA:SpecialInstructions 0 unbounded
DeliveryTerms nsA:DeliveryTerms 0 (1)
ShipmentMethodOfPaymentCode nsA:ShipmentMethodOfPaymentCode 0 (1)
Routing nsA:Routing 0 (1)
OtherPartner nsA:OtherPartner 0 unbounded
CountryOfFinalDestinationCode nsA:CountryOfFinalDestinationCode 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PriceAndAvailabilityRequestProperties
